Cambridge Audio DacMagic 100 Black

Digital to Analogue Converter

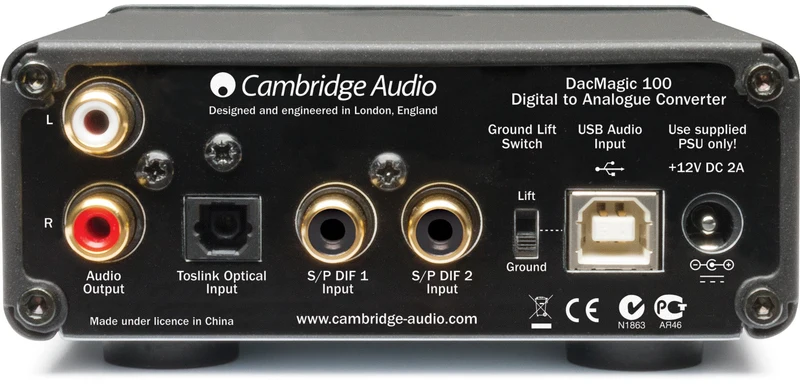

Thanks to a Wolfson 24-bit DAC, a 24-bit/96kHz driverless USB Audio 1.0 input and S/PDIF and TosLink digital inputs, the DacMagic 100 takes the sound from your computer, iPod, TV and other digital devices and adds detail, depth and added clarity to give you a true audio experience.

DIGITAL TO ANALOGUE CONVERTER

Wolfson WM8742 24-bit DAC

FREQUENCY RESPONSE

20Hz to 20kHz (±0.1dB)

THD @ 1KHZ 0DBFS

<0.0025% 24-bit

THD @ 1KHZ -10DBFS

<0.0025% 24-bit

THD @ 20KHZ 0DBFS

<0.0025%

SIGNAL TO NOISE RATIO

-113dBr

TOTAL CORRELATED JITTER

<130pS

CROSSTALK @ 1KHZ

< -130dB

CROSSTALK @ 20KHZ

< -112dB

OUTPUT IMPEDANCE

<50ohms

MAX. OUTPUT LEVEL (UNBALANCED)

2.3V rms

DIGITAL INPUT WORD WIDTHS SUPPORTED

16-24bit

DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED

32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz

MAX. POWER CONSUMPTION

5W

COLOUR

Black or silver

DIMENSIONS (WXHXD)

106 x 46 x 130mm (4.1 x 1.8 x 5.1")

WEIGHT

0.5Kg (1.1 lbs)
