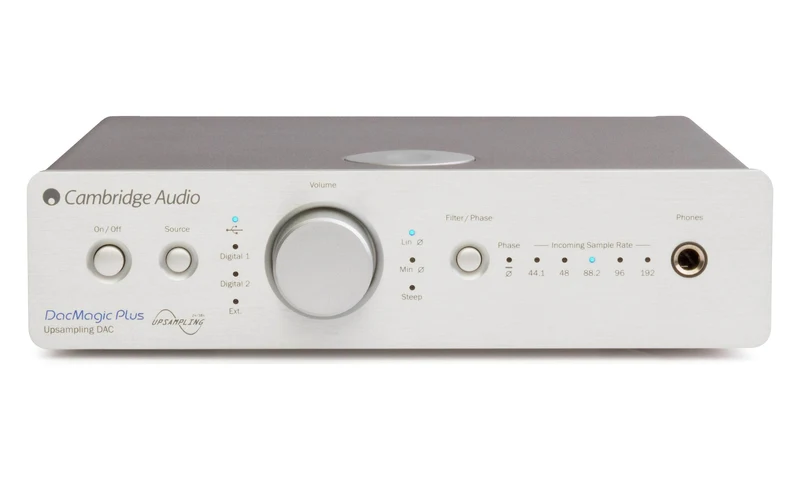

Cambridge Audio DacMagic Plus Silver

Digital to Analogue Converter & Preamplifier

The DacMagic Plus has fantastic new features including wireless device connectivity and stunning audio performance from music of all formats. Thanks to twin DACs it instantly improves audio fidelity from all your favourite digital products allowing you to make your computer, TV, Blu-ray player and other devices a true part of your hi-fi system.

DIGITAL TO ANALOGUE CONVERTERS

Dual Wolfson WM8740 24-bit DACs

DIGITAL FILTER

Analog Devices ADSP21261 DSP; upsampling to 24-bit/384kHz

ANALOGUE FILTER

2-Pole Dual Differential Bessel Double Virtual Earth Balanced

FREQUENCY RESPONSE

20Hz to 20kHz (±0.1dB)*

THD @ 1KHZ 0DBFS

<0.001% 24-bit

THD @ 1KHZ -10DBFS

<0.001%

THD @ 20KHZ 0DBFS

<0.002%

SIGNAL TO NOISE RATIO

-112dBr

TOTAL CORRELATED JITTER

<130pS

CROSSTALK @ 1KHZ

< -130dB

CROSSTALK @ 20KHZ

< -112dB

OUTPUT IMPEDANCE

<50 Ohms

MAX. OUTPUT LEVEL (UNBALANCED)

2.1V rms

MAX. OUTPUT LEVEL (BALANCED)

4.2V rms (2.1V per phase)

DIGITAL INPUT WORD WIDTHS SUPPORTED

16-24bit

DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED

32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz**, 192kHz

AUDIO OUTPUT UPSAMPLING

Fixed 24-bit/384kHz

MAX POWER CONSUMPTION

12W

COLOUR

Black or silver

DIMENSIONS (HXWXD)

52 x 215 x 191mm; (2.0 x 8.6 x 7.6”)

WEIGHT

1.2kg/2.6lbs

HEADPHONE OUTPUT THD

at 1kHz 0dBFS 24-bit signal with 22kHz low pass filter = 0.001% at 20khz 0dBFS 24-bit signal with 80kHz low pass filter = 0.003%

S/N

-111dBrA

FREQUENCY RESPONSE

10Hz - 100kHz

RECOMMEND HEADPHONE IMPEDANCE

32 Ohm to 600 Ohm

*

Steep filter disabled

**

Digital 1 & 2 Inputs only
