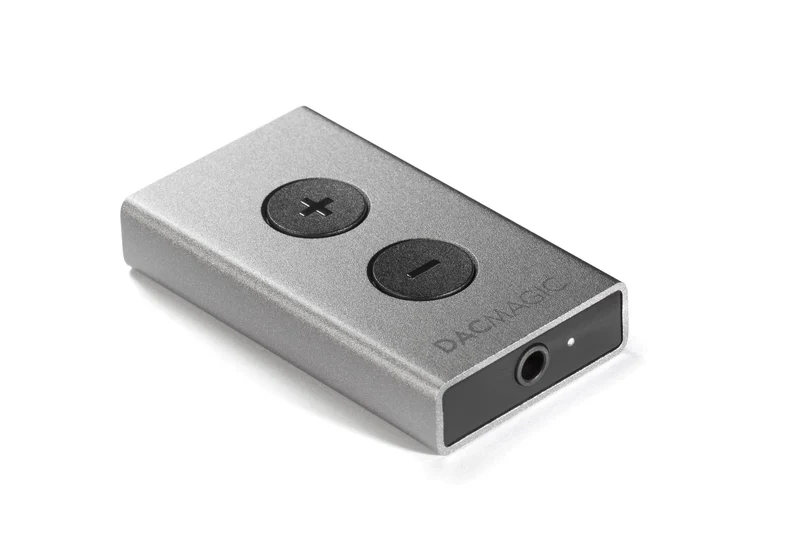

Cambridge Audio DacMagic XS v2

Portable USB DAC

The DacMagic XS USB Digital to analogue converter (DAC)/ headphone amp is an instant upgrade to any computer’s sound output. It connects quickly and easily to any USB port and allows you to hear your favourite music and movies with every drop of detail, exactly as the artist intended.

CONNECTIONS

Micro USB input, 3.5mm analogue output

DIGITAL TO ANALOGUE CONVERTER

ESS9023 24-bit DAC

SAMPLE RATES SUPPORTED

USB 1.0 mode: 16/24-bit, 44.1kHz, 48kHz, 88.2kHz, 96kHz USB 2.0 mode: 16/24-bit, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

OUTPUT VOLTAGE

2V RMS

MAX. POWER CONSUMPTION

150mW

MIN. HEADPHONE IMPEDANCE

12 Ohms

FREQUENCY RESPONSE

+/-0.2dB 20Hz – 20kHz

THD (UNWEIGHTED)

<0.004%

SIGNAL TO NOISE RATIO

103 dBr (unweighted)

CROSSTALK @ 1KHZ

66dB

OUTPUT IMPEDANCE

0.5 Ohms

VOLUME STEPS

53 steps (54 different volume levels)

DIMENSIONS (WXHXD)

30 x 10 x 53.5mm (1.2 x 0.4 x 2.1’’)

WEIGHT

100g (3.5oz)
