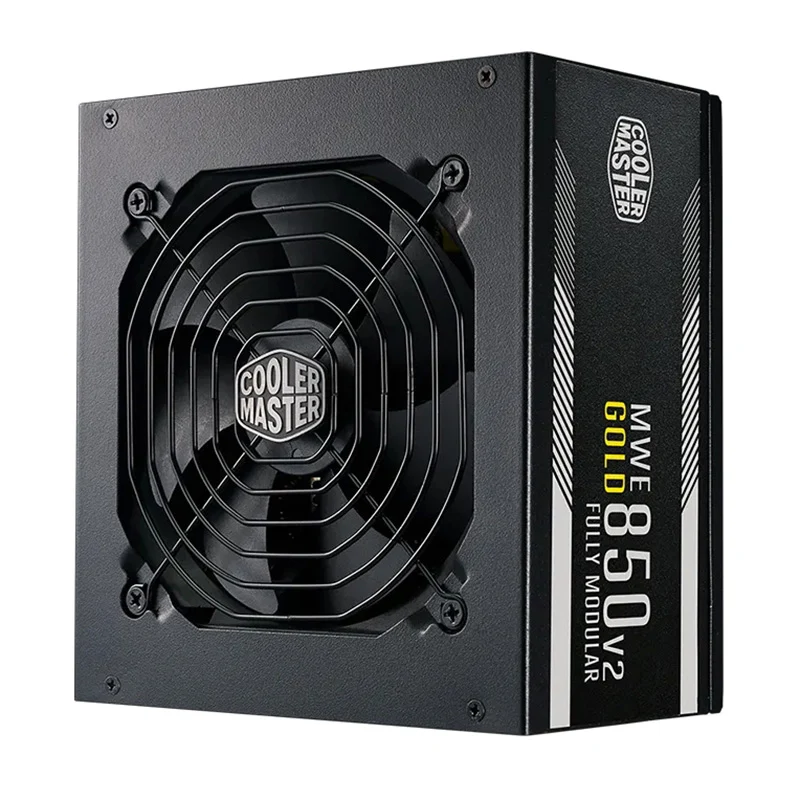

Cooler Master 850W MWE V2 80+ Gold Fully Modular PCIe 5.1 ATX 3.1 Power Supply (MPE-8501-AFAAG-3EAU)

ATX Version

ATX 12V Ver. 3.1

PFC

Active PFC

Input Voltage

100-240V

Input Current

12-6A

Input Frequency

50-60Hz

Dimensions (L x W x H)

160 x 150 x 86 mm

Fan Size

120mm

Fan Bearing

HDB

Efficiency

90% @ Typical Load

80 PLUS Rating

80 PLUS Gold

ErP 2014 Lot 3

Yes

Operating Temperature

0-50 °C

Power Good Signal

100 - 150 ms

Hold Up Time

16ms

MTBF

>100,000 Hours

Protections

UVP / OVP / OPP / OTP / SCP / OCP

Regulatory

TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA

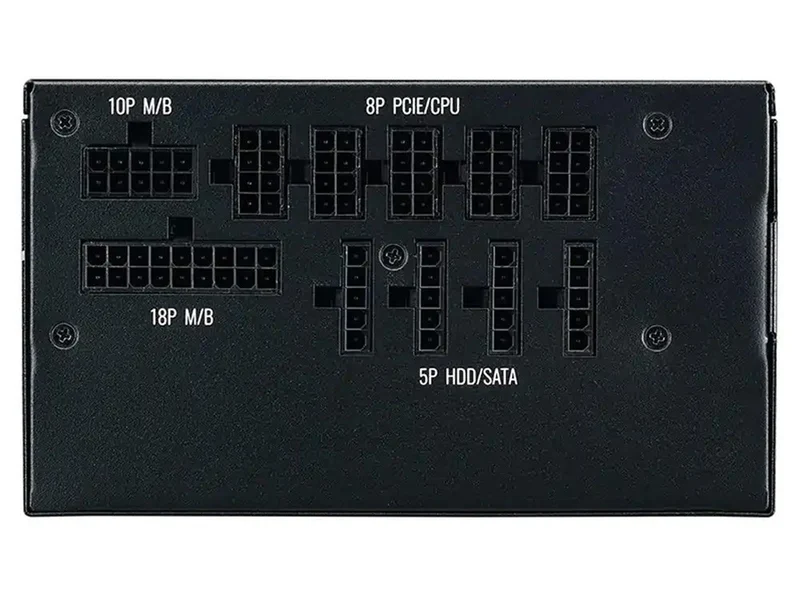

ATX 24 Pin Connectors

1

EPS 4+4 Pin Connectors

1

EPS 8 Pin Connector

1

SATA Connectors

12

Peripheral 4 Pin Connectors

4

PCI-e 6+2 Pin Connectors

4

12V-2x6 Connectors

1 (1 to 3)

Series

MWE Gold Series

Modular

Fully Modular

Form Factor

ATX

80 Plus Efficiency

Gold

Watts

850W
