Leverantör: Dynavector

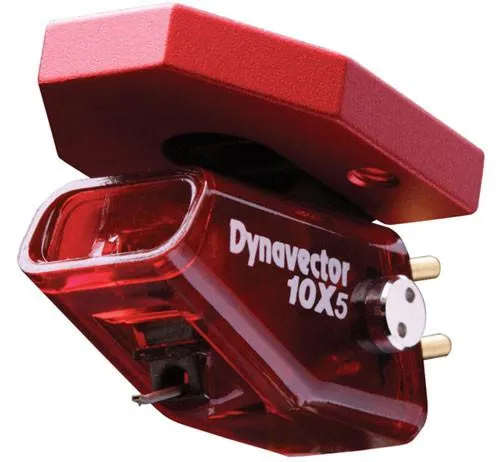

Dynavector DV-10X5
Beskrivning
| Type | High output moving coil cartridge with flux damper and softened magnetism |
| Output Voltage | 2.5mV (at 1KHz, 5cm/sec.) |
| Channel Separation | 25 dB (at 1KHz) |
| Channel balance | 1.0 dB (at 1KHz) |
| Frequency response | 20 - 20,000Hz (± 2dB) |
| Compliance | 12 x 10-6 cm/dyn |
| Tracking force | 1.8 - 2.2 grams |
| DC resistance | R=150 ohms |
| Recommended load impedance |
>1k ohms |
| Cantilever | 6mm length aluminium pipe |
| Stylus | Elliptical |
| Weight | 6.6 grams |
