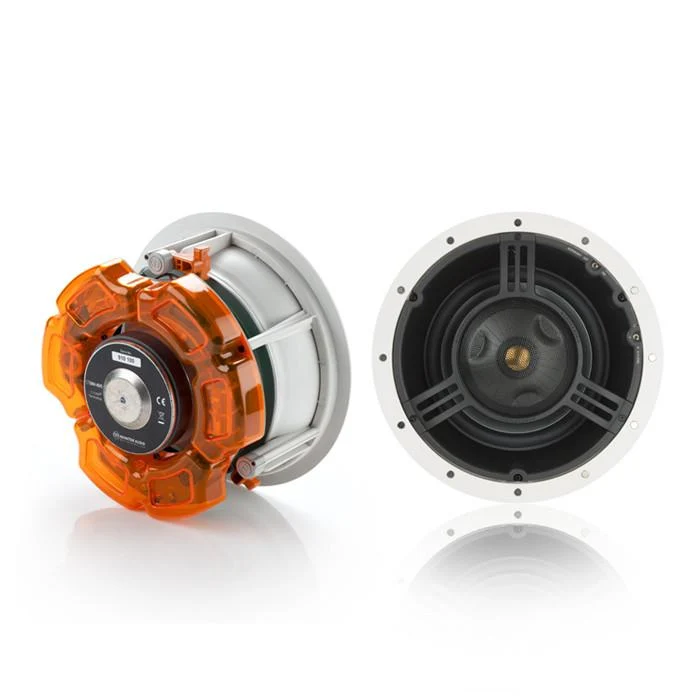

Monitor Audio C280-IDC In Ceiling Speaker

An 8" C-CAM® bass driver and a more highly specified version of the C-CAM gold dome tweeter offer an extended high-frequency response to 30kHz, as well as higher output and power handling capacity than the 100 Series 2-way models. Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3dB / 0dB / -3dB) level adjustment, and boundary compensation (on / off) controls.

• 3-way design with pivoting C-CAM tweeter (15 degrees of play).
• High overall efficiency.
• High frequency level adjustment (3dB).
• Boundary compensation control.
• Audio match with CP range 200 models and Silver Series hi-fi speakers.
• Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
• Magnetic and easily removable steel grille.
• Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
• Splash and humidity proof for installation in shower room or pool areas.
• Features dust protection cover that is designed to prevent the ingress of dirt or dust into the driver and crossover.

Specifications:

Frequency Response

50 Hz - 30 kHz

Impedance (Nominal)

6 Ohms

Sensitivity (1W@1M)

90 dB

Maximum SPL

111.6 dBA

Power Handling (RMS)

120 W

Recommended Amp Requirements

30 - 120 W

Drivers Unit Complement

8” C-CAM® cone bass driver
1” C-CAM pivoting gold dome tweeter

Adjustment Controls

HF Level Switch (+3dB / 0dB / -3dB)
Boundary Compensation Switch

Overall Diameter:(including grille)

285 mm
(11 1/4 inch)

Overall Depth:(including grille)

125 mm
(4 15/16 inch)

Cut Out Diameter

247 mm
(9 3/4 inch)

Mounting Depth

121 mm
(4 3/4 inch)

Fixing Type

3 position Tri-Grip® dog leg fixings

Construction Material

Mineral Filled ABS Plastic
(RoHS2 Compliant)

Pre-Construction Bracket

CB8 (Green)

Weight

2.8kg (6lb 2oz)
