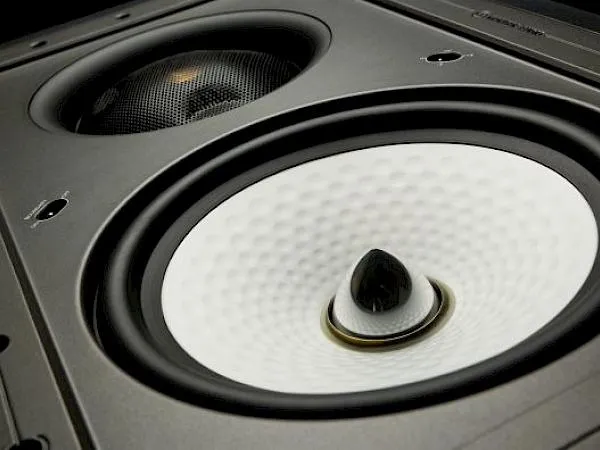

Monitor Audio WT380-IDC In Wall Speaker each

CP-WT380IDC

Incorporating Monitor Audio’s innovative, pivoting Inverted Dual Concentric (IDC) midrange/tweeter module and 8” RST C-CAM bass driver, the three-way CP-WT380IDC represents the highest level of new CP performance.

Technology

• Pivoting IDC C-CAM gold dome tweeter.
• Pivoting module consisting of IDC midrange driver and C-CAM gold dome tweeter.
• C-CAM bass driver featuring Rigid Surface Technology (RST).
• High overall efficiency.
• High frequency level adjustment (+/-3dB).
• Midrange frequency level adjustment.
• Boundary compensation controls.
• Die-cast aluminium front baffle.
• Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
• Magnetic and easily removable steel grille.
• Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
• Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

Specifications Frequency Response

50 Hz - 30 kHz

Nominal Impedance

6 Ohms

Sensitivity (1W@1M)

89 dB

Maximum SPL

109.6 dBA

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

30 - 120 W

Crossover Frequency

Bass low pass: 300 Hz @ 6 dB / Octave
Mid: 300 Hz @  6 dB / Octave
& 3 kHz @ 12 dB / Octave

Drive Unit Complement

3-Way
8˝ C-CAM® RST® cone bass driver
4˝ C-CAM IDC® cone mid range driver
1˝ C-CAM gold dome tweeter
(tweeter & midrange driver combined in a pivoting module)

Adjustment Controls

HF Level Switch
(+3dB / 0dB / -3dB)
MF Level Switch
(+3dB/ 0dB/ -3dB)
Boundary Compensation Switch

Overall Dimensions (H x W x D)

472.5 x 303.5 mm (18 5/8 x 11 15/16 inches)

Overall Depth (Including Grille)

106 mm (4 3/16 inches)

Cut-Out Dimensions

438 x 269 mm (17 1/4 x 10 9/16 inches)

Mounting Depth

99 mm (3 7/8 inches)

Fixing Type

6 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled ABS Plastic
(RoHS2 Compliant)

Weight

5.62 kg (12lb 6oz)

Pre-Construction Bracket

WB10 Pre-Construction Bracket (Light Brown)
