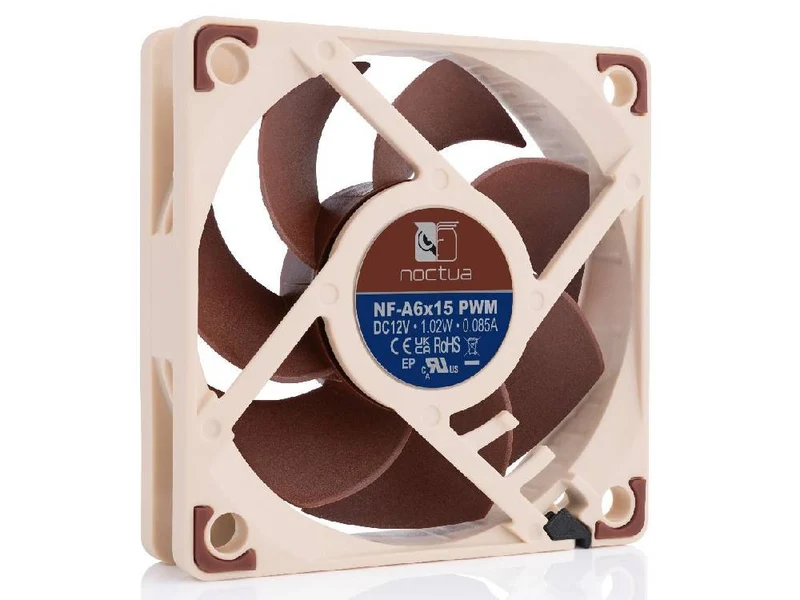

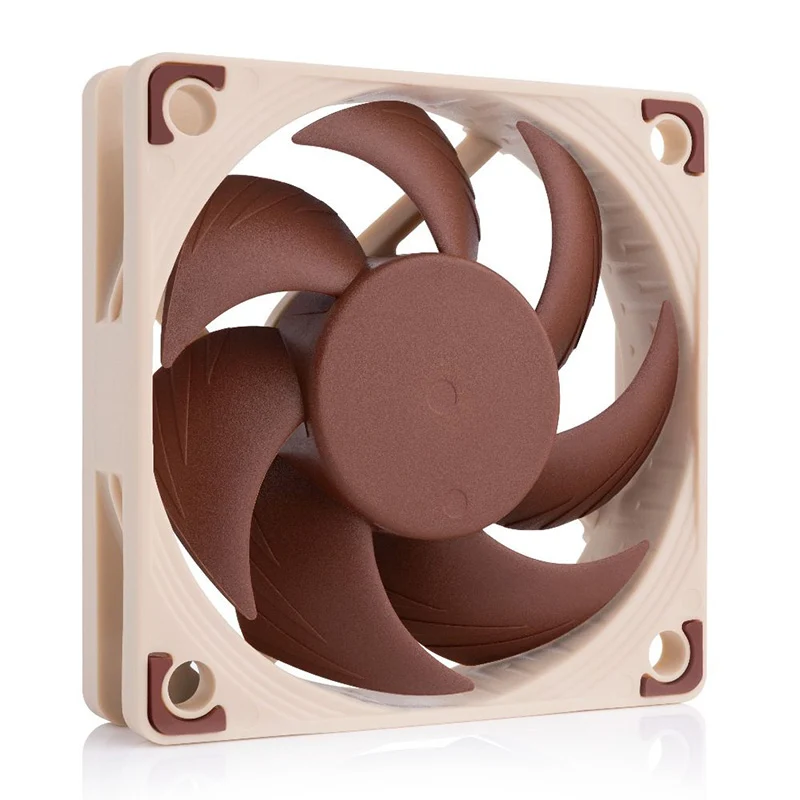

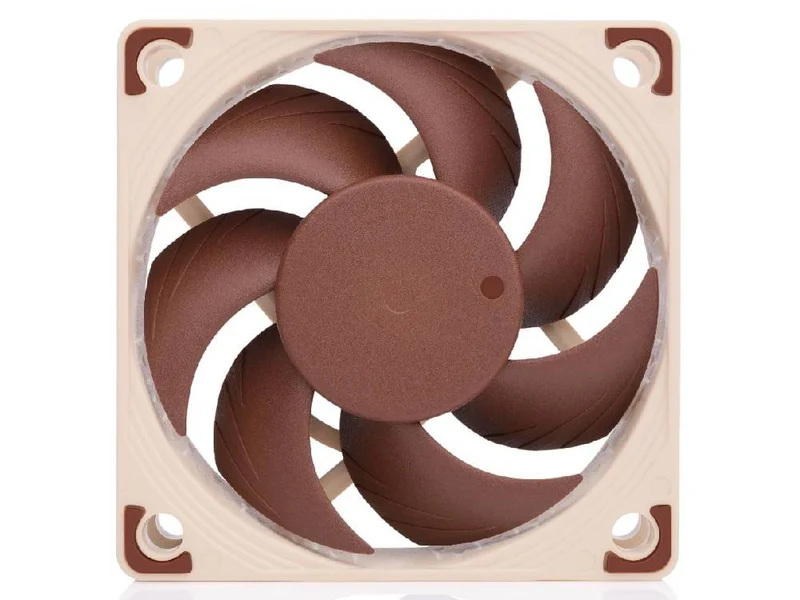

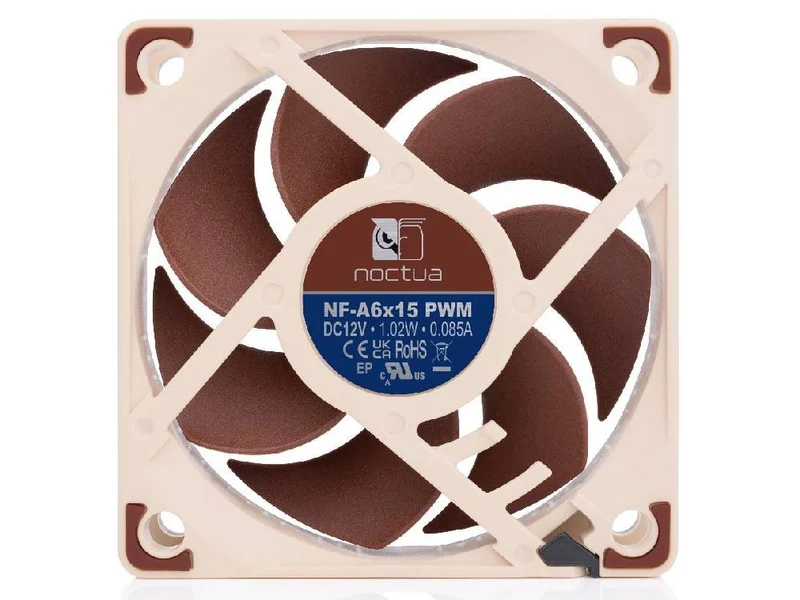

Noctua 60mm 3500 RPM 4-PIN PWM Fan (NF-A6X15-PWM)

Size

60x60x15 mm

Mounting hole spacing

50x50 mm

Connector & pin-configuration

4-pin PWM

Cable length

20cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

A-Series with Flow Acceleration Channels

Frame technology

AAO (Advanced Acoustic Optimisation)

Material

Fibre-glass reinforced PBT

Rotational speed (+/- 10%)

3500 RPM

Rotational speed with L.N.A. (+/- 10%)

3050 RPM

Airflow

23.4 m³/h

Airflow with

L.N.A. 20.1 m³/h

Acoustical noise

19,8 dB(A)

Acoustical noise with

L.N.A. 16.5 dB(A)

Static pressure

2.43 mm H₂O

Static pressure with L.N.A.

1.79 mm H₂O

Input power (max.)

1.02 W

Max. input current

0,085 A

Operating voltage

12 V

MTTF

> 150.000 h

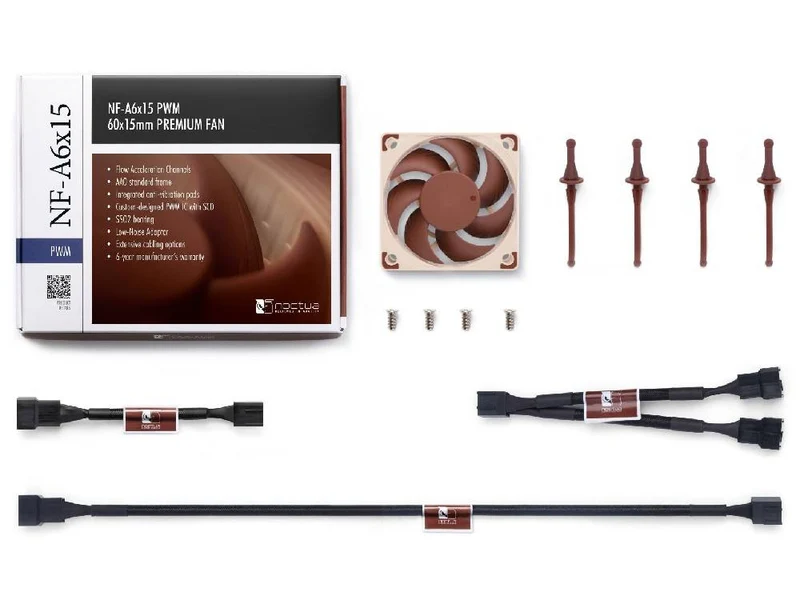

Scope of delivery

4x NA-AV2 anti-vibration mounts

NA-EC1 30cm extension cable

NA-YC1 4-pin PWM splitter cable

NA-RC14 Low-Noise Adaptor (L.N.A.)

Fan screws
