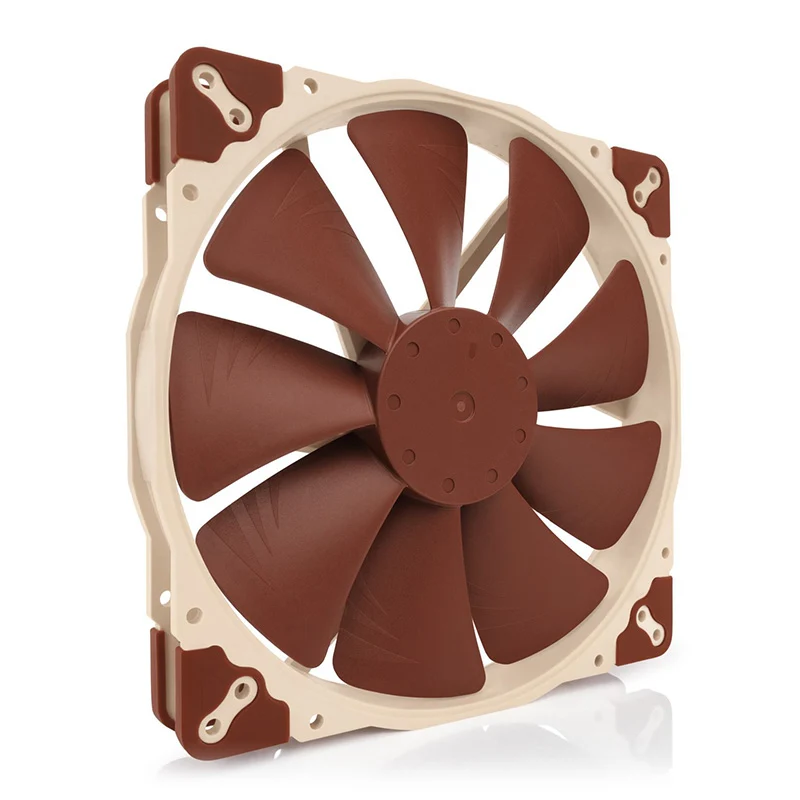

Noctua NF-A20-PWM 200mm PWM Fan

Size

200x200x30 mm

Mounting hole spacing

154x154, 110x180, 170x170 mm

Connector & pin-configuration

4-pin PWM

Cable length

20cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

A-Series with Flow Acceleration Channels

Frame technology

AAO (Advanced Acoustic Optimisation)

Rotational speed (+/- 10%)

800 RPM

Rotational speed with L.N.A. (+/- 10%)

550 RPM

Min. rotational speed @ 20% PWM (+/-20%)

350 RPM

Airflow

146,9 m³/h

Airflow with L.N.A.

100,8 m³/h

Acoustical noise

18,1 dB(A)

Acoustical noise with L.N.A.

10,7 dB(A)

Static pressure

1,08 mm H‚‚O

Static pressure with L.N.A.

0,51 mm H‚‚O

Input power (typical)

0,82 W

Input power (max.)

0,96 W

Input current (typical)

0,07 A

Max. input current

0,08 A

Operating voltage

12 V

Voltage PWM signal

5 V

MTTF

> 150.000 h

Scope of delivery

Low-Noise Adaptor (L.N.A.)

4-pin y-cable

30cm extension cable

NA-AV3 anti-vibration mounts

NA-AV4 anti-vibration mounts

Fan screws

Notes

Please refer to our case compatibility list for detailed compatibility information.
