Leverantör: NOCTUA

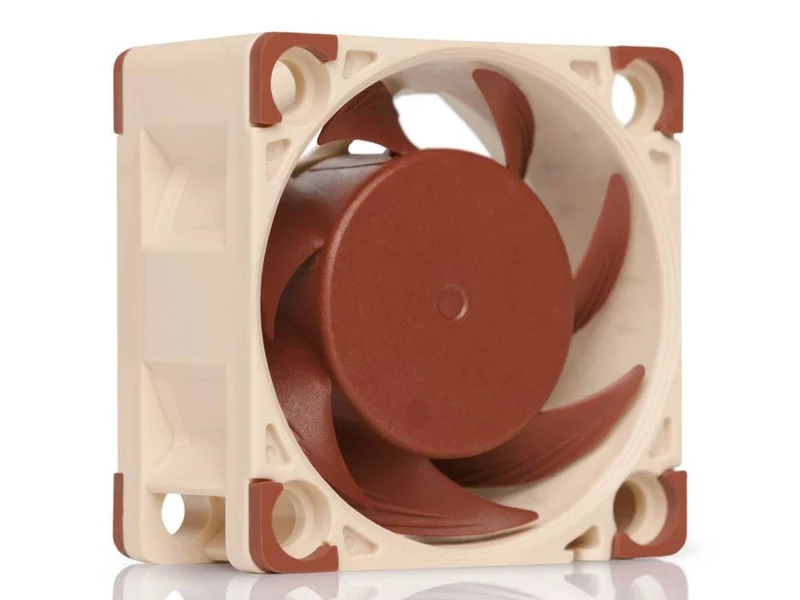

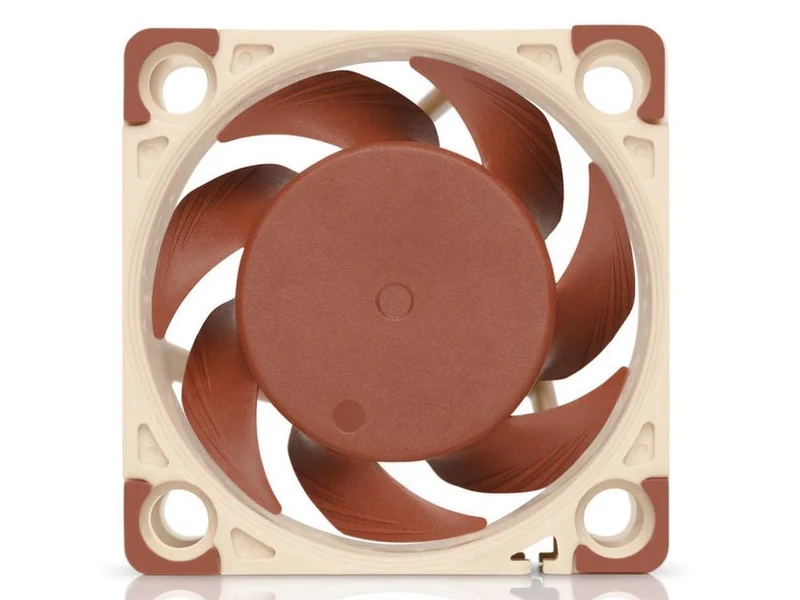

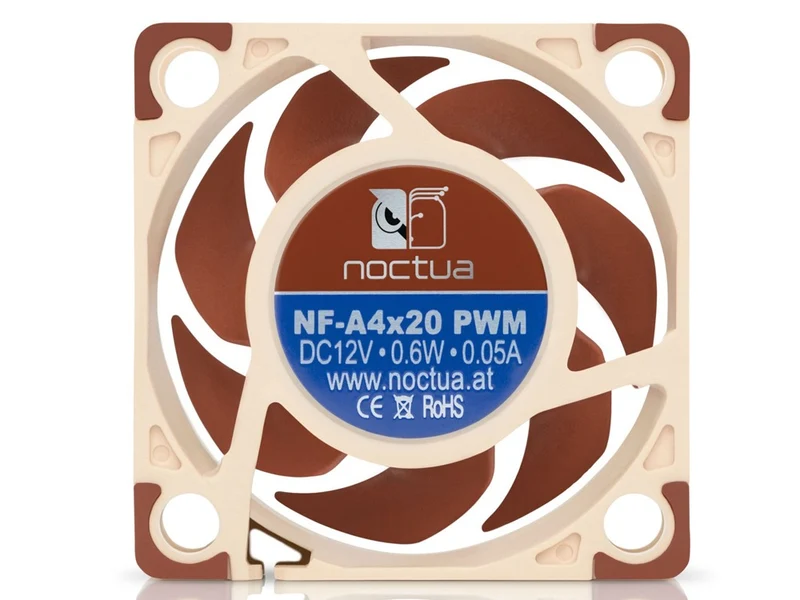

Noctua NF-A4x20 PWM 5000RPM 40mm Fan

~~300,92 kr~~158,06 krPå rea

Seller

Centre Com

Beskrivning

	FAN Specification
Size	40x40x20 mm
Mounting hole spacing	32x32 mm
Connector & pin-configuration	4-pin PWM
Cable length	20cm + 30cm NA-EC1 extension cable
Bearing	SSO2

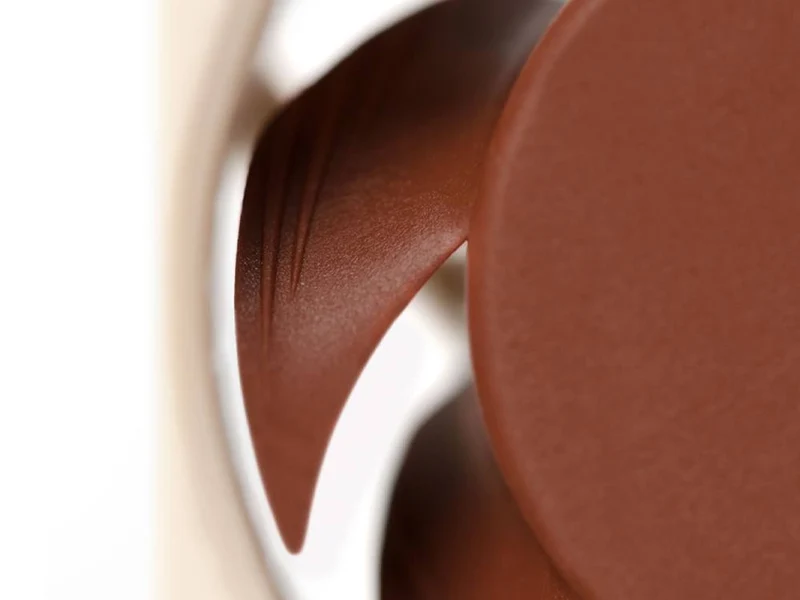

Blade geometry	A-Series with Flow Acceleration Channels
Frame technology	AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)	5000 RPM
Rotational speed with L.N.A. (+/- 10%)	4400 RPM
Min. rotational speed @ 20% PWM (+/-20%)	1200 RPM
Airflow	9,4 m³/h
Airflow with L.N.A.	8,3 m³/h
Acoustical noise	14,9 dB(A)
Acoustical noise with L.N.A.	12,2 dB(A)
Static pressure	2,26 mm H2O
Static pressure with L.N.A.	1,75 mm H2O
Input power (typical)	0,46 W
Input power (max.)	0,6 W
Input current (typical)	0,04 A
Max. input current	0,05 A
Operating voltage	12 V
Voltage PWM signal	5 V
MTTF	> 150.000 h

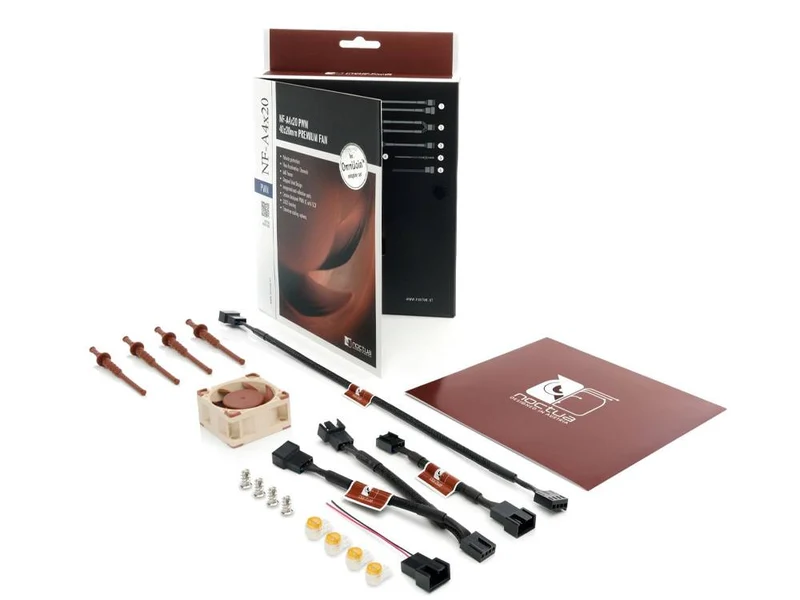

Scope of delivery	Low-Noise Adaptor (L.N.A.)
	4-pin y-cable
	30cm extension cable
	OmniJoin™ adaptor set
	NA-AV3 anti-vibration mounts
	Fan screws
Warranty	6 years
