Leverantör: OMNITRONIC

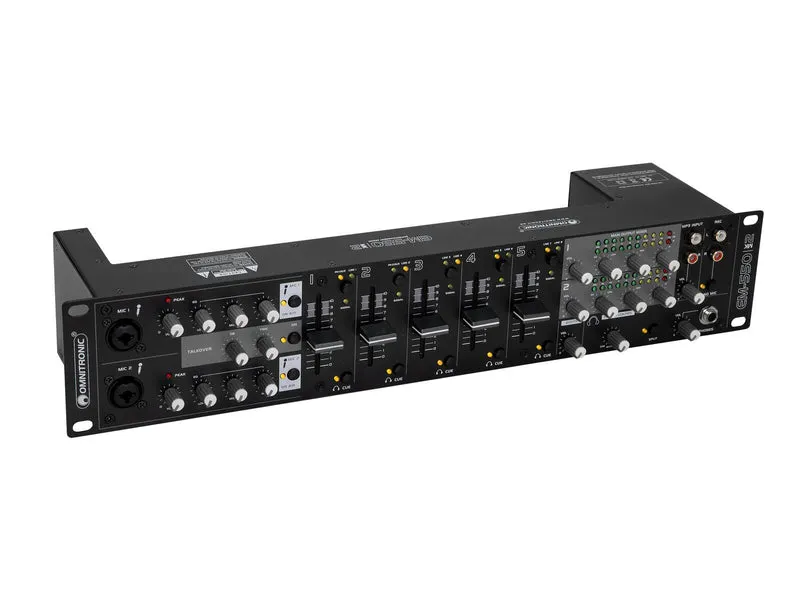

OMNITRONIC EM-550B MK2 underhållningsmixer
Beskrivning
Multifunktionell 5+2-kanals installationsmixer, Black
- 5 ingångskanaler med infällda gainkontroller på bakpanelen, signal-LED och mjuka kanalfaders
- Prefaderlyssning av ingångskanaler och masterutgång via justerbar hörlursutgång, med cue mix/split-funktion
- 2 justerbara masterutgångar med 3-vägs equalizer och 10-siffrig stereo LED-nivåmätare
- (19") 48.3 cm rackinstallation 2 U
- För användningsområden såsom: Installation; restauranger, barer och hotell; klubbar/dansskola
Scope of delivery
- 1 x mixer
- 1 x user manual
- 1 x power cord
- 1 x RCA cable
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 9 W |
| Protection class: | Protection class II |
| Power connection: | Power supply cord with Euro plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >65 dB line/phono |
| THD: | Line/phono <0.02 % at 1 kHz |
| Gain: | Microphone 52 dB Line 19 dB Phono 54 dB |
| Housing color: | Black |
| Control elements: | Power switch, regular talkover, source selector |
| Status LED: | Signal, master level meter, peak, channel source; CUE, talkover, ON AIR, routing |
| Connections: | Input: microphone via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line/phono via 2 x stereo RCA Input: line via 9 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 2 x stereo RCA Output: headphones via 1 x 6.3-mm-jack (bal.) Output: booth via stereo RCA Output: rec. via 2 x stereo RCA |
| Channels: | Input channel: 2 x stereo with line-line/phono switch via RCA, channel control via fader, , gain control, source selector, CUE switch Input channel: 3 x stereo with line-line switch via RCA, channel control via fader, , gain control, source selector, CUE switch Microphone channel: 2 x mono via Combination socket (XLR/jack), channel control via rotary dial, 3-band tone control EQ, ON AIR switch, talkover switch Master output: 2 x stereo via XLR eller RCA, channel control via rotary dial, 3-band tone control EQ Rec. output: 2 x stereo via RCA, NO MIC switch Headphones output: 1 x stereo via jack, channel control via rotary dial, cue mix split function Booth output: 1 x mono + stereo via RCA, channel control via rotary dial Input channel: 1 x stereo via RCA, channel control via rotary dial |
| Housing design: | (19") 48.3 cm rackinstallation 2 U |
| Dimensions: | Width: 48.3 cm Depth: 14.8 cm Height: 8.9 cm |
| Weight: | 3.10 kg |
