Leverantör: OMNITRONIC

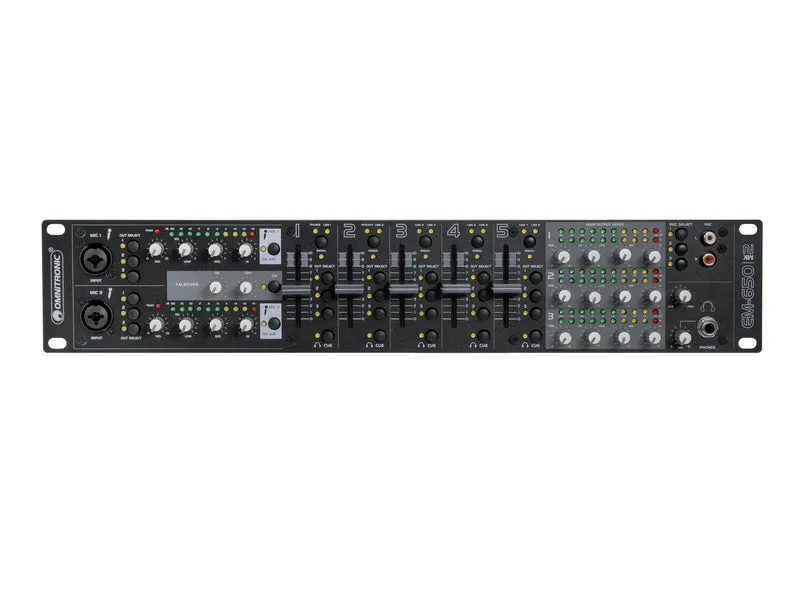

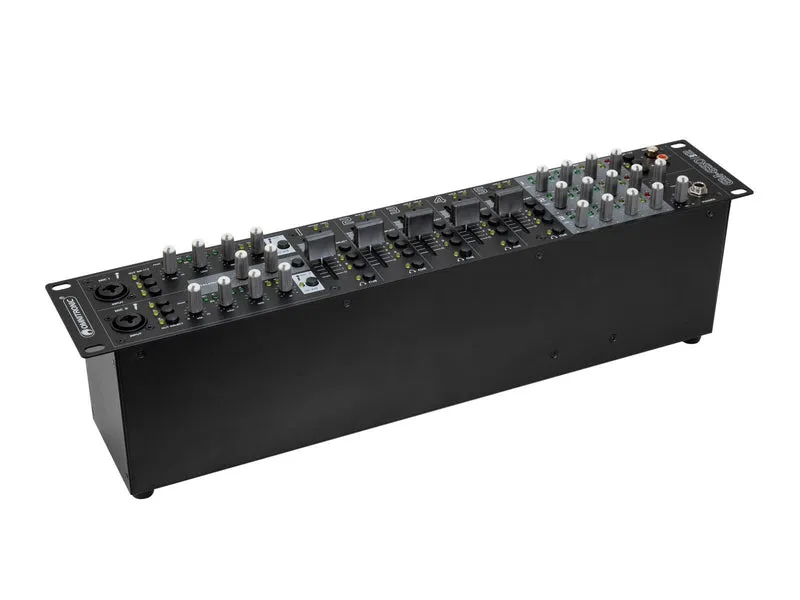

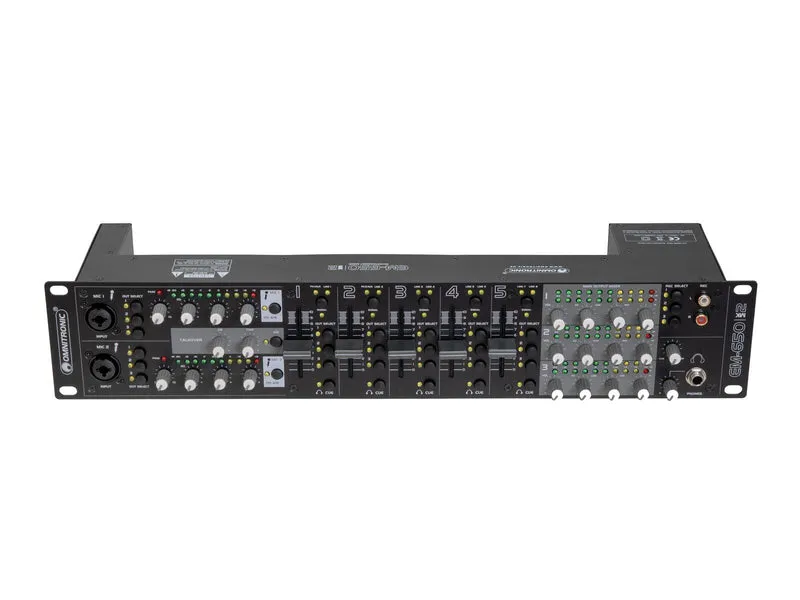

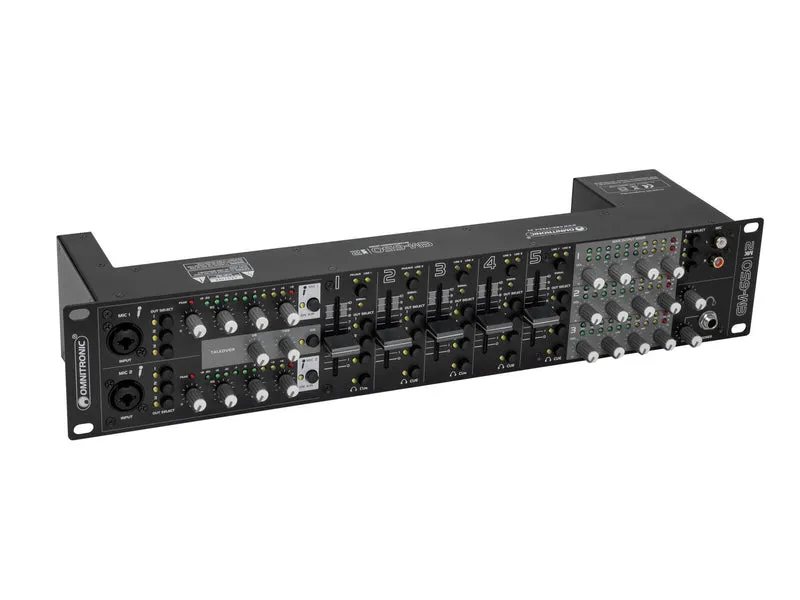

OMNITRONIC EM-650B MK2 underhållningsmixer
Beskrivning
Multifunktionell 5+2-kanals mixer med 3 zoner, svart
- 5 ingångskanaler med infällda gainkontroller på bakpanelen, signal-LED och mjuka kanalfaders
- 3 justerbara masterutgångar med 3-vägs equalizer och 10-siffrig stereo LED-nivåmätare
- (19") 48.3 cm rack installation 2 U
- För användningsområden såsom: Installation; restaurants, bars and hotels; clubs/dancing school
Scope of delivery
- 1 x mixer
- 1 x user manual
- 1 x power cord
- 1 x RCA cable
| Power supply: | 230 V AC, 50 Hz |
| Protection class: | Protection class II |
| Power connection: | Power supply cord with Euro plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >60 dB line >70 dB phono |
| THD: | Line/phono <0.02 % at 1 kHz |
| Gain: | Microphone 52 dB Line 17 dB Phono 53 dB |
| Housing color: | Black |
| Zone output: | 3 adjustable zones |
| Control elements: | Power switch, regular talkover, source selector |
| Status LED: | Signal, channel level meter, master level meter, peak, channel source; CUE, talkover, ON AIR, routing |

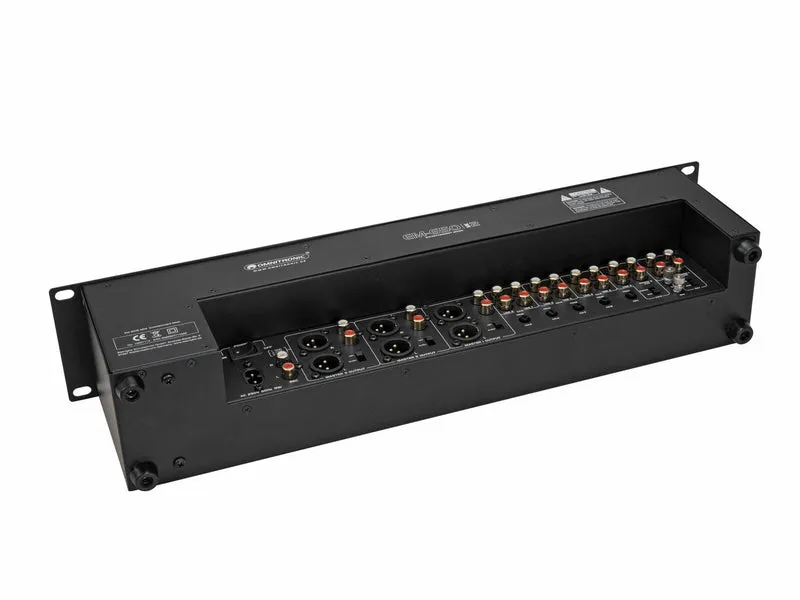

| Connections: | Input: microphone via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line/phono via 2 x stereo RCA Input: line via 8 x stereo RCA Output: master via 3 x 3-pin XLR Output: master via 3 x stereo RCA Output: rec. via 2 x stereo RCA Output: headphones via 1 x 6.3-mm-jack (bal.) |
| Channels: | Input channel: 2 x stereo with line-line/phono switch via RCA, channel control via fader, 3-band tone control EQ, routing master bus switch, gain control, source selector, CUE switch Input channel: 3 x stereo with line-line switch via RCA, channel control via fader, routing master bus switch, gain control, source selector, CUE switch Microphone channel: 2 x mono via Combination socket (XLR/jack), channel control via rotary dial, ON AIR switch, routing master bus switch, talkover switch Master output: 3 x stereo via XLR or RCA, channel control via rotary dial, 3-band tone control EQ Rec. output: 1 x stereo via RCA, routing master bus switch Headphones output: 1 x stereo via jack, channel control via rotary dial, cue mix function |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48.3 cm Depth: 14.8 cm Height: 8.9 cm |
| Weight: | 3.10 kg |
