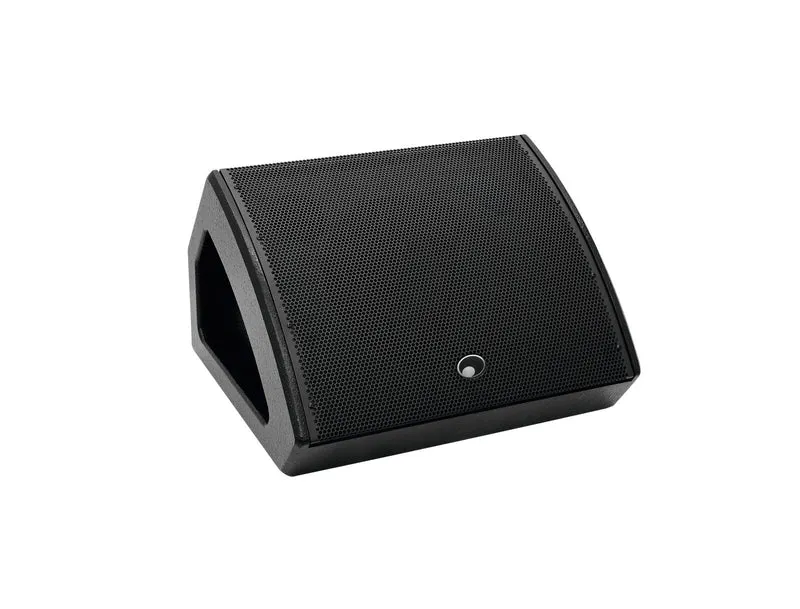

OMNITRONIC KM-110A Aktiv Stage Monitor, koaxial

Monitor, 10" woofer, 1.35" driver, 150 W RMS LF, 50 W RMS HF

• Active 2-way coaxial stage monitor for live and playback applications
• Class D/AB biamp power amplifier
• 25 cm basshögtalare (10") och 3.5 cm kompressionsdriver (1.35")
• Bassreflexkabinett ger djup bas och hög SPL
• Low cut, volymkontroll
• Black metal grille
• 2 infällda bärhandtag
• För användningsområden såsom: Stage; band/rehearsal room; mobile use

Scope of delivery

• 1 x compact cabinet speaker
• 1 x user manual
• 1 x power cord

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	80 W 1/8 power
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Device fuse:	5 x 20 mm, T 2 A fuse replaceable
Power:	Program: 300W Rated: 50W RMS HF Rated: 150W RMS LF
Frequency range:	60 - 20000 Hz
Max. SPL:	121 dB
Dispersion angle:	80° x 80°

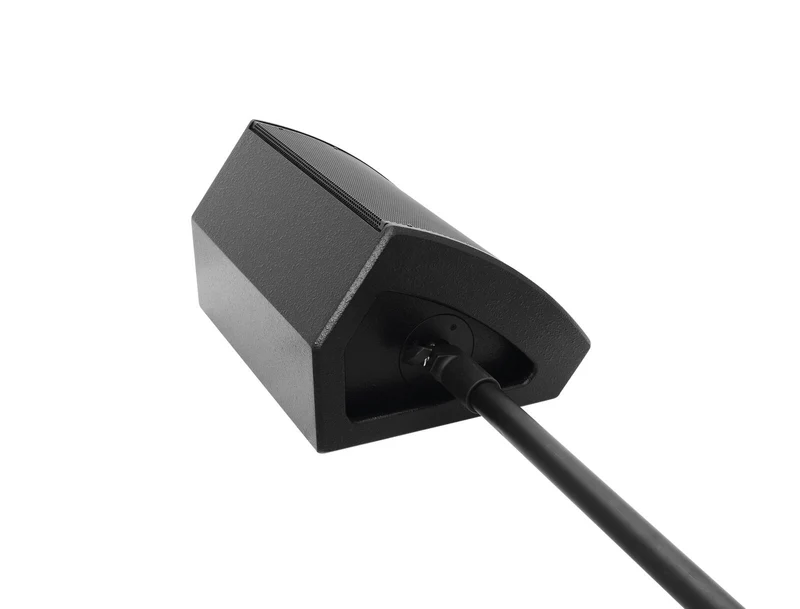

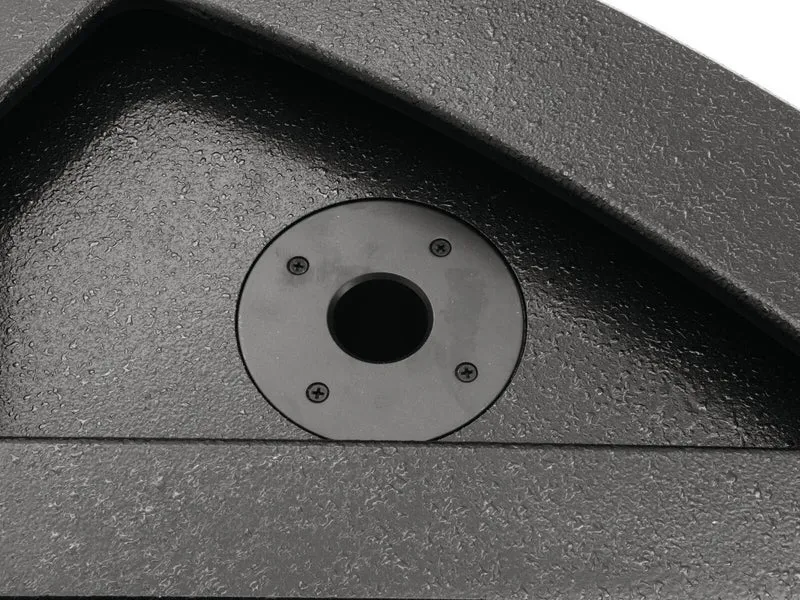

Attachment system:	Flange:

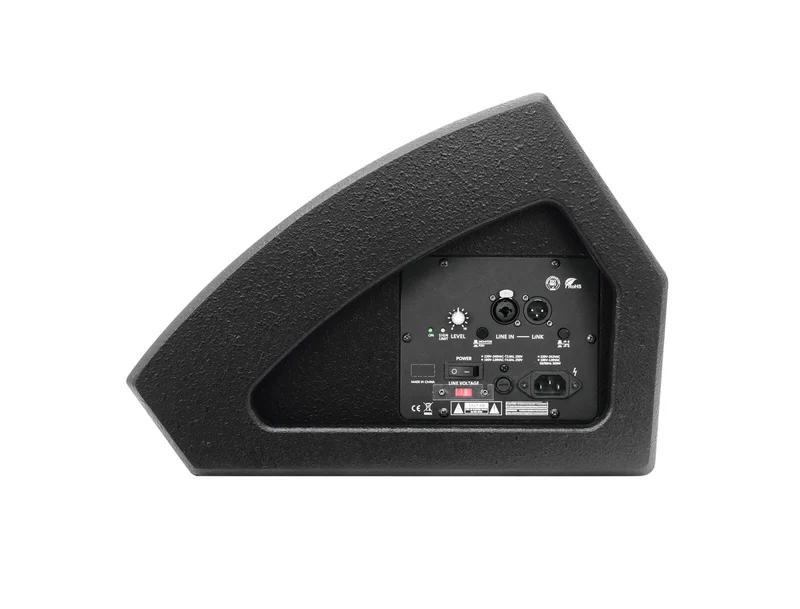

Control elements:	Power switch, level control, tone control, groundlift selector
Controls:	Overload; limiter
Status LED:	Power, signal, limit
Connections:	Input: line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR
Input channels:	1 x mono via XLR or jack, channel control via rotary dial
Speaker:	1 x woofer 10" with ferrit magnet Basket material: steel Conematerial: cardboard/paper 1 x voice coil compression tweeter highs 1.35"
Type of speaker:	Compact cabinet speaker; coaxial speaker; stage monitor
Recessed carrying handle:	2 pc/pcs
Material:	MDF (medium density fiberboard), 15 mm
Color:	Black, textured coating, painted
Dimensions:	Width: 48 cm Depth: 30 cm Height: 42 cm
Weight:	14.30 kg
