Leverantör: OMNITRONIC

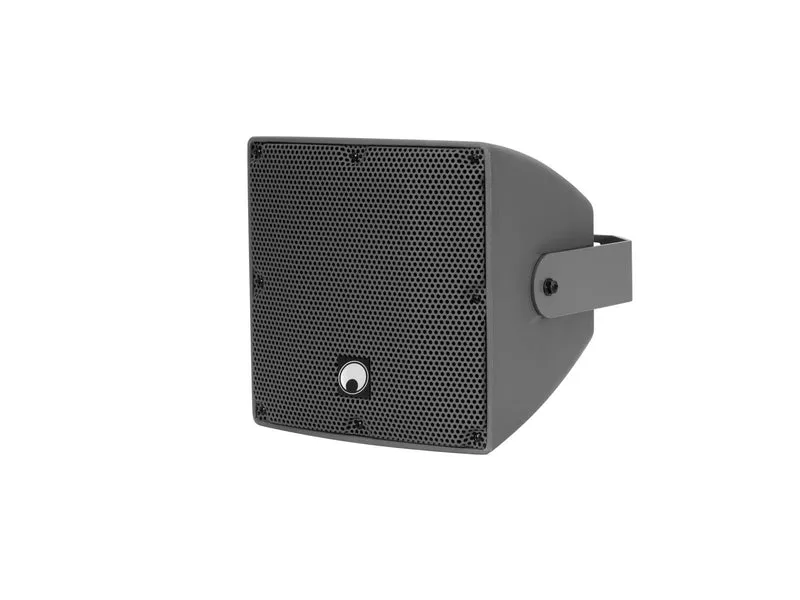

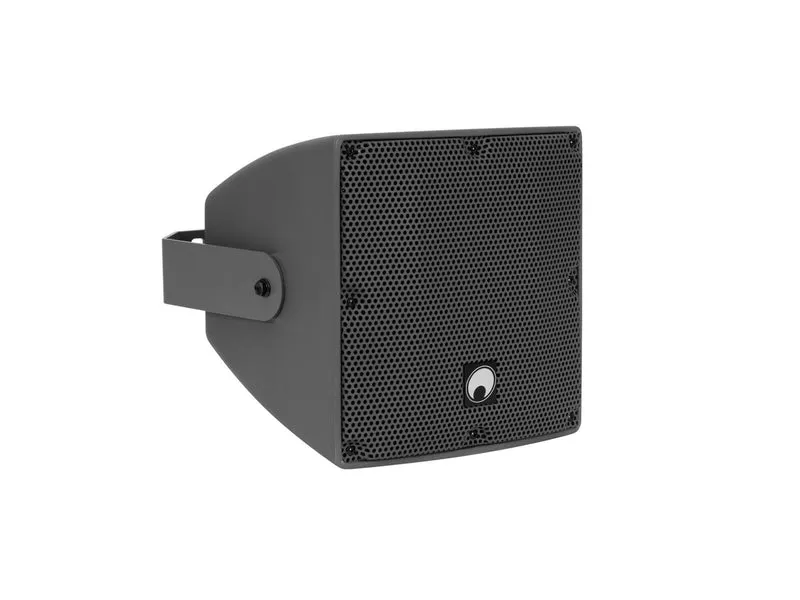

OMNITRONIC ODX-208TM installationshögtalare 100V dark grå
Beskrivning
Väderbeständig 8" vägghögtalare (IP56) med fäste, 150 W RMS
- Välbalanserat ljud
- 2-vägs koaxialsystem med 20 cm woofer (8") och 2.5 cm dome-tweeter (1")
- Strömväljare med 8 ohms driftläge
- Skruvterminaler för parallellkoppling
- Med monteringsfäste
- Grå aluminiumgrill med akustisk skum
- Lämplig för utomhusbruk IP56
- For application areas such as: Installation; sports centres/gyms; multi-purpose hall
Scope of delivery
- 1 x top
- 1 x mounting bracket
- 1 x user manual
- 6 x screw
- 1 x safety eyelet
- 1 x lid
- 2 x washer
| IP classification: | IP56 |
| Power: | Program: 300W Rated: 150W RMS |
| Frequency range: | 80 - 18000 Hz |
| Sensitivity: | 96 dB (1W/1m) |
| Max. SPL: | 118 dB |
| Dispersion angle: | 90° x 90° |
| Impedance: | 8 ohms; public address systems 100V |
| Attachment system: | Mounting bracket |
| Power tapping: | 37.5W; 75W; 150W RMS via selector switch switchable |

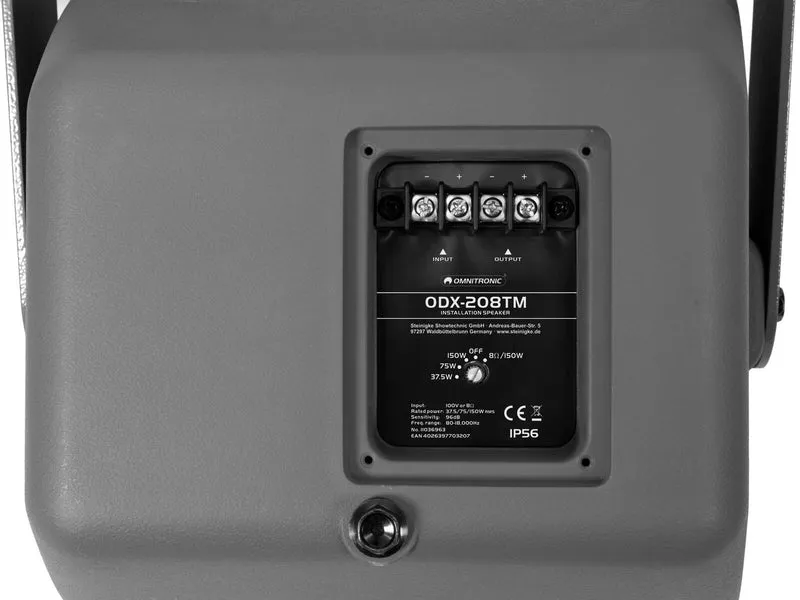

| Connections: | Input: speaker via screw terminal |
| Crossover frequency: | 2300 Hz |
| Speaker: | 1 x woofer 8" Basket material: aluminum Conematerial: cardboard/paper Voice coil lows 2" 1 x compression tweeter highs 1" Voice coil compression tweeter highs 1.4" |
| Type of speaker: | On ceiling/on wall speaker |
| Color: | Grey |
| Dimensions: | Width: 30 cm Depth: 28 cm Height: 30 cm |
| Weight: | 10.85 kg |
