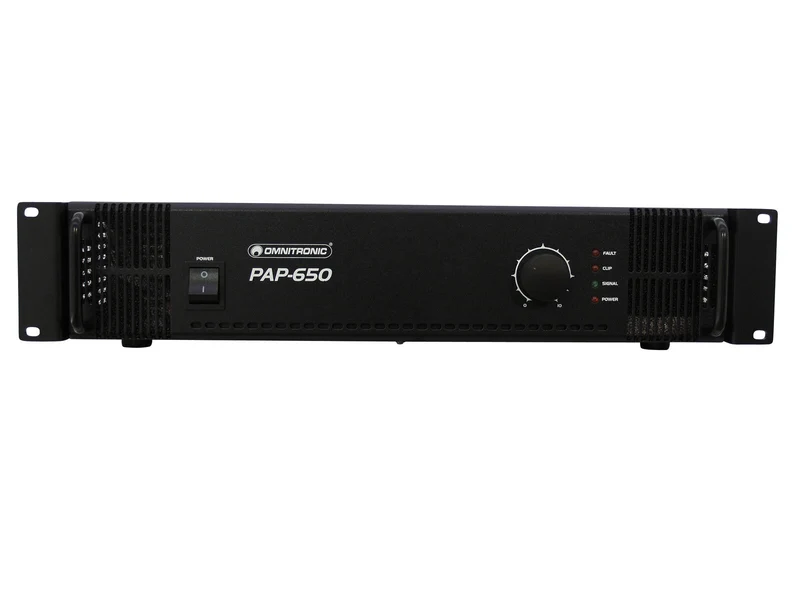

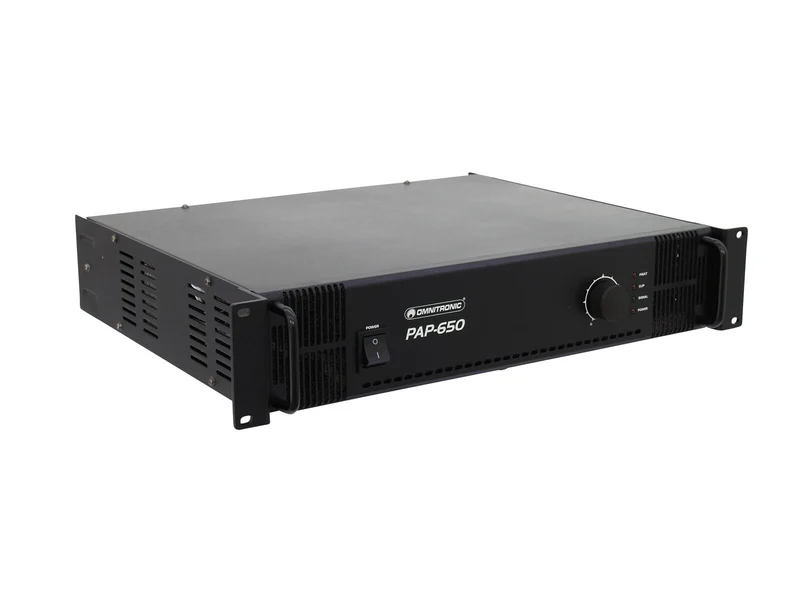

OMNITRONIC PAP-650 PA-förstärkare

PA power amplifier, 650 W RMS

• 1 lineindgang (valgfrit XLR eller 6.3 mm jack)
• 1 gennemgangsudgang (valgfrit XLR eller 6.3 mm jack)
• Master kontrol
• LED-indikatorer for strøm, niveau, clip og fejl
• Belastningsregistrering og effektkontrol
• (19") 48.3 cm rackmontering 2 U
• Meget effektiv luftstrøm fra front til bag
• Enheden køles af temperaturstyret ventilator
• Til anvendelsesområder såsom: Installation; restauranter, barer og hoteller; sportscentre/gymnastiksale

Scope of delivery

• 1 x amplifier
• 1 x brugervejledning

Power supply:	230 V AC, 50 Hz
Protection class:	Protection class I
Output power:	650 W RMS

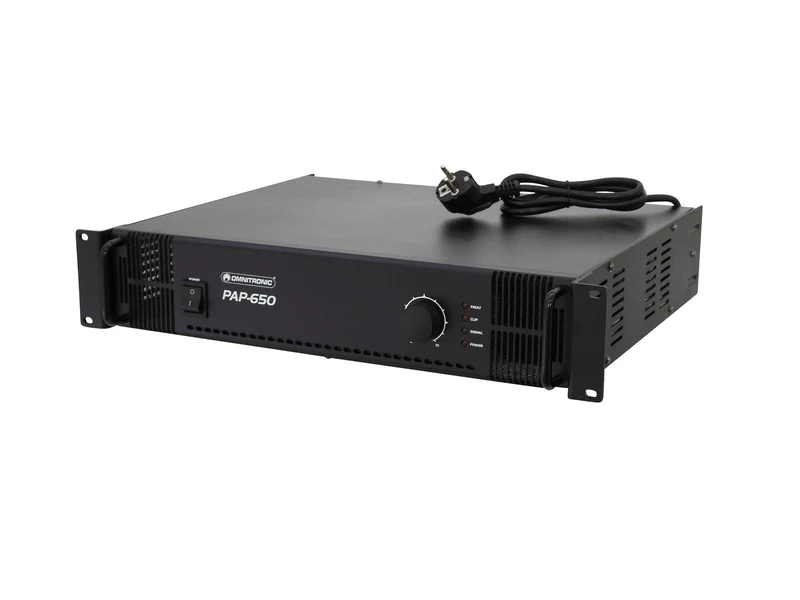

Power connection:	Fixed power supply cord with safety plug
Cable length:	1.2 m
Device fuse:	5 x 20 mm, T 8 A fuse replaceable
Frequency range:	80 - 16000 Hz
S/N ratio:	>90 dB line
THD:	<0.5 % at 1 kHz
Cooling:	1 x temperature-controlled fan , air flow from front to rear
Impedance:	4-16 ohms; public address systems 100V; Public address systems 70V
Housing color:	Black
Circuitry:	Class AB
Control elements:	Power switch, level control
Controls:	Softstart; overheat; overload; short-circuit; DC voltage
Status LED:	Signal, power, fault, clip

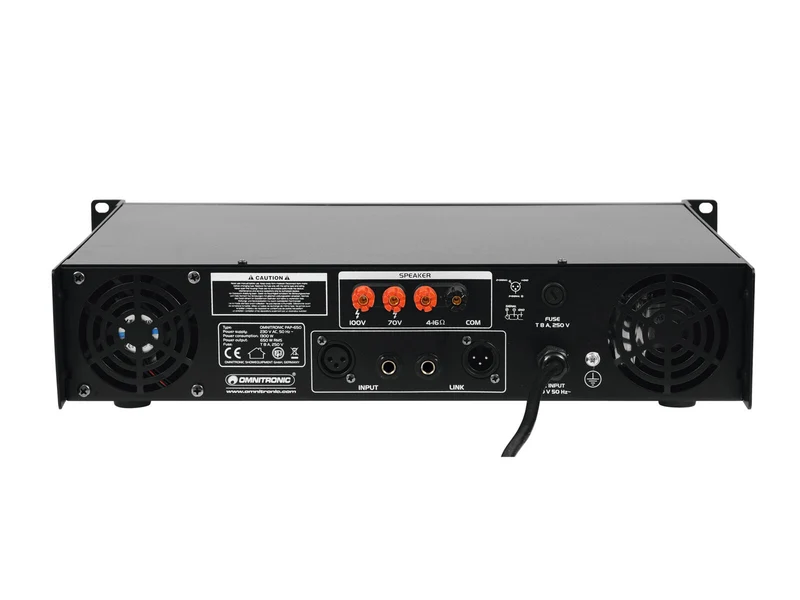

Connections:	Input: line via 1 x 6.3 mm jack socket (mono) mounting version Input: line via 1 x 3-pin XLR 0.3 V Output: line via 1 x 6.3 mm jack socket (mono) mounting version Output: line via 1 x 3-pin XLR Output: speaker via 4 x screw terminal
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48.3 cm Depth: 38.5 cm Height: 8.9 cm
Weight:	15.00 kg
