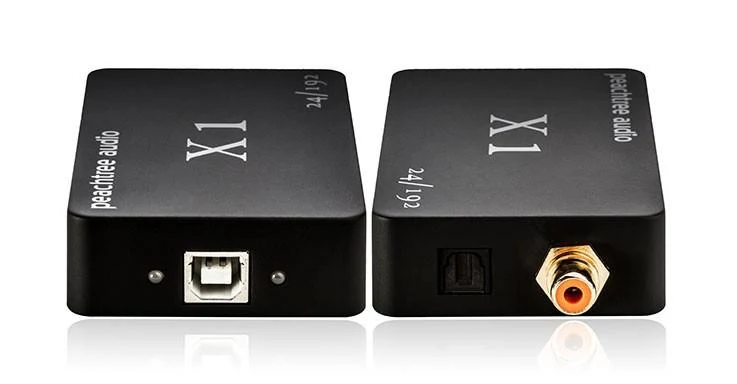

Peachtree Audio X1 Asynchronous USB to SPDIF Converter - Black

Upgrade your USB DAC to Asynchronous 24/192

USB inputs on many DACs don’t support resolution beyond 16-bit/48kHz. The Peachtree Audio X1 USB to SPDIF Converterinterfaces between your computer’s USB output and your DAC’s SPDIF input (coax or optical) to provide a high-resolution upgrade over your DAC's stock USB input.

The X1 lets you fully enjoy the highest-resolution digital music available – all the way to 24-bit/192kHz resolution!

If your computer's operating system is Windows XP, Windows 7 or Windows 8 you'll need a small easy-to-install driver to unlock the X1's 24-bit/192kHz resolution. No driver is needed for Mac OS X. Download WIndows Driver Now.

PERFORMANCE TIPS

• If you need to run a long USB cable (over 3 meters) from your computer to your audio system you'll likely experience dropouts. Instead, use an X1 with a 1.5M USB cable from the computer and a 1.5M 75Ω SPDIF cable to the system. The connection should now be rock solid.

• The X1’s USB input is transformer-coupled so it is effective at isolating noise from the computer and preventing it from getting to the DAC. The transformer-coupled X1 can also assist in solving ground loop issues.

Upgrade your older Peachtree DAC or Integrated Amp with the X1

PEACHTREE MODEL	RESOLUTION OF  INTERNAL USB	RESOLUTION WITH  X1 CONNECTED TO SPDIF INPUT
Decco, Decco2, iDecco,  Nova, musicBox	maximum 16/48  44.1, 48kHz	maximum 24/96  44.1, 48, 88.2, 96kHz
iNova, iDac, DAC•iT	maximum 24/96  44.1, 48, 96kHz	maximum 24/192  44.1, 48, 88.2, 96, 176.4, 192kHz

• Resolution: 16/44.1,16/48,
  24/88, 24/96, 24/176, 24/192
• USB 2.0 Type B Input: Asynchronous up to 24/192
• Optical Output: Up to 24/96
• Coax Output: Up to 24/192
• Output Impedance: 75 Ω
• Compatible Operating Systems: Mac OS X 10.6.4 and newer, Windows XP and newer
• Dimensions: 3.35 x 2.17 x 0.79 inches; 85 x 55 x 20 mm
• Weight: 4.06 oz; 115 grams
• Warranty: 2 Years Parts and Labor
