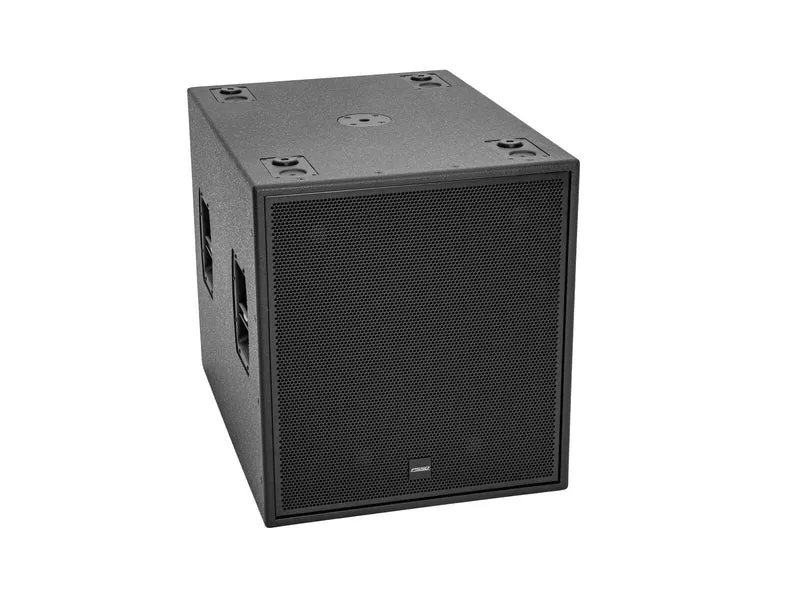

PSSO KX-181A Subwoofer, aktiv, DSP

Active 18" PA bassreflex subwoofer, 1400 W RMS

• Aktiv PA-subwoofer för turnébruk och permanenta installationer
• Mångsidiga uppställningsalternativ med KX-topphögtalare och särskilt inställda presets
• Endfire- och kardioid-array-konfigurationer möjliga
• Digital signalprocessor
• DSP-presets: 80 Hz hi cut; 90 Hz hi cut; 100 Hz hi cut; 120 Hz hi cut; End Fire 80 Hz; Inverted/Cardioid 80 Hz
• Enheten kyls av temperaturstyrd fläkt
• Svart metalgrill med akustiskt skum
• 4 robusta bärhandtag
• Ström-ingång och -utgång för kedjekoppling upp till 4 enheter

Medföljande komponenter

• 1 x bass
• 1 x power cord
• 1 x bruksanvisning

Power supply:	230 V AC, 50 Hz
Power consumption:	1800 W
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x P-Con (gray), mounting version
Device fuse:	5 x 20 mm, F 8 A fuse replaceable
Power:	1400W RMS Peak: 2800W
Frequency range:	30 - 400 Hz
Max. SPL:	134 dB
DSP:	Digital signal processor
DSP presets:	80 Hz hi cut; 90 Hz hi cut; 100 Hz hi cut; 120 Hz hi cut; End Fire 80 Hz; Inverted/Cardioid 80 Hz
Cooling:	1 x temperature-controlled fan
Attachment system:	M20 thread
Circuitry:	Class D

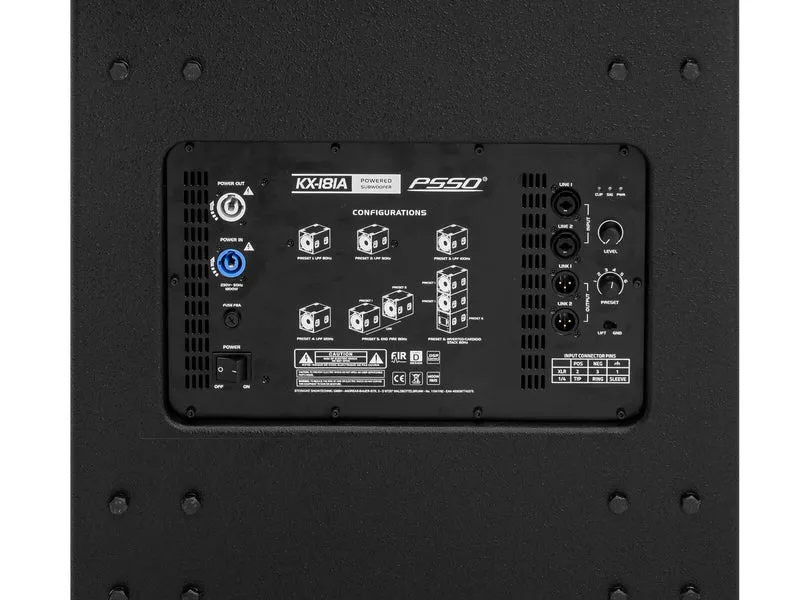

Control elements:	Power switch, groundlift selector, level control, DSP preset switch
Controls:	Overheat; short-circuit; DC voltage; limiter
Status LED:	Power, signal, clip
Connections:	Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 2 x 3-pin XLR (M) mounting version
Speaker:	1 x woofer 18" with ferrit magnet Basket material: aluminum Conematerial: cardboard/paper Voice coil woofer in/out wound 4"
Type of speaker:	Subwoofer
Type of construction:	Vented
Carrying handle:	4 pc/pcs
Material:	Baltic birch plywood, 18 mm
Color:	Black, matte
Dimensions:	Width: 56 cm Depth: 76 cm Height: 62.8 cm
Weight:	53.25 kg
Power cord
Cable construction:	3 x 1.5 mm² H05VV-F
Cable length:	2.5 m detachable
