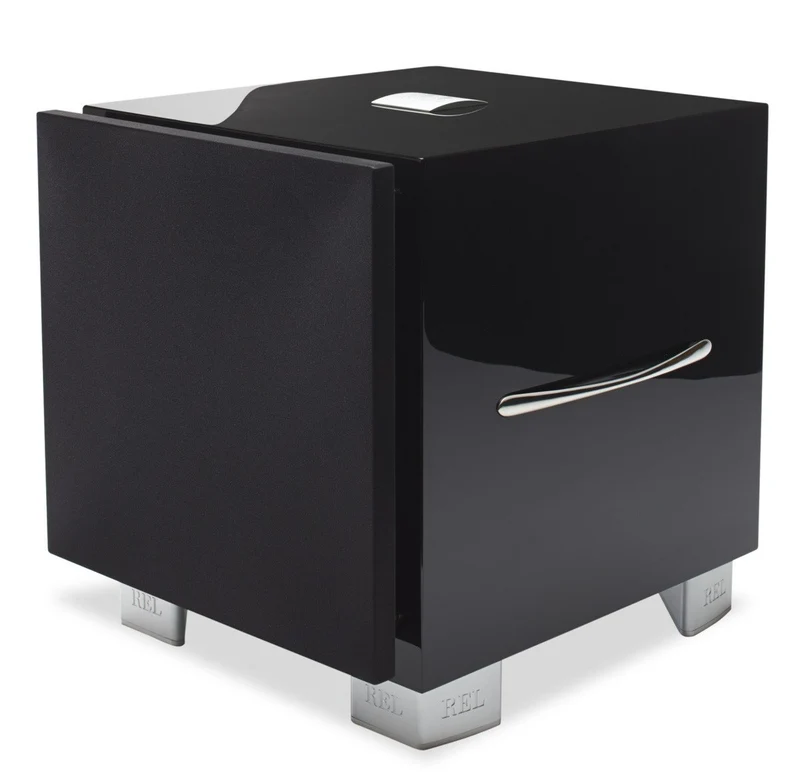

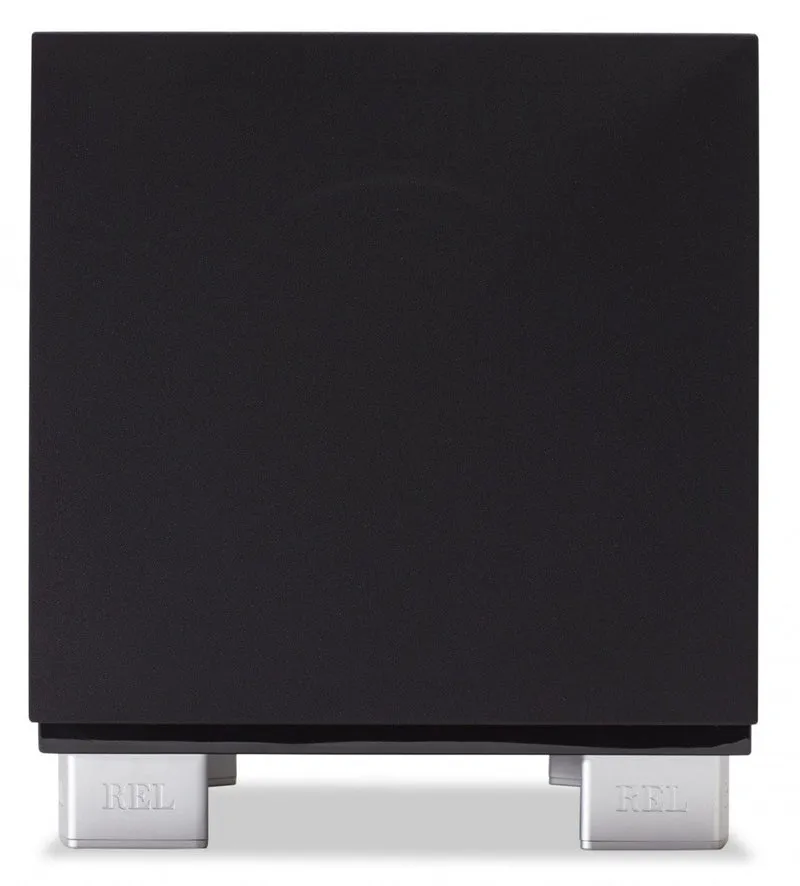

REL S/3 SHO

THE BEAUTIFULLY BALANCED S/3 SHO

S/3 SHO (Super High Output) derives from the flagship S/5 SHO offering a more compact footprint while retaining much of S/5 SHO’s performance, making it an ideal pairing for slightly more modest systems and rooms. In quality it is the equal of S/5 SHO using the same Continuous CastTM Alloy Cone Driver and carbon passive radiator, only in a slightly reduced size, paired with a 400W NexGen2 digital amplifier. Beautifully balanced, S/3 SHO offers powerful, incisive performance for both 2-channel and theater systems.

SHO refers to Super High Output, made possible by a new 3-stage limiter our engineers created after extensive testing revealed that much higher output, higher gain and higher performance could be unlocked. The result is a new design that is capable of more than doubling its predecessor’s output. Specify the S/3 SHO, singly or in pairs, when your system is of exceptionally high quality, and your speakers and room can support high levels of dynamics and bass extension.

TYPE

Front-firing active driver, down-firing passive

ACTIVE DRIVER SIZE & MATERIAL

10 in., 250mm long-throw, Continuous CastAlloy™ cone structure, cast chassis

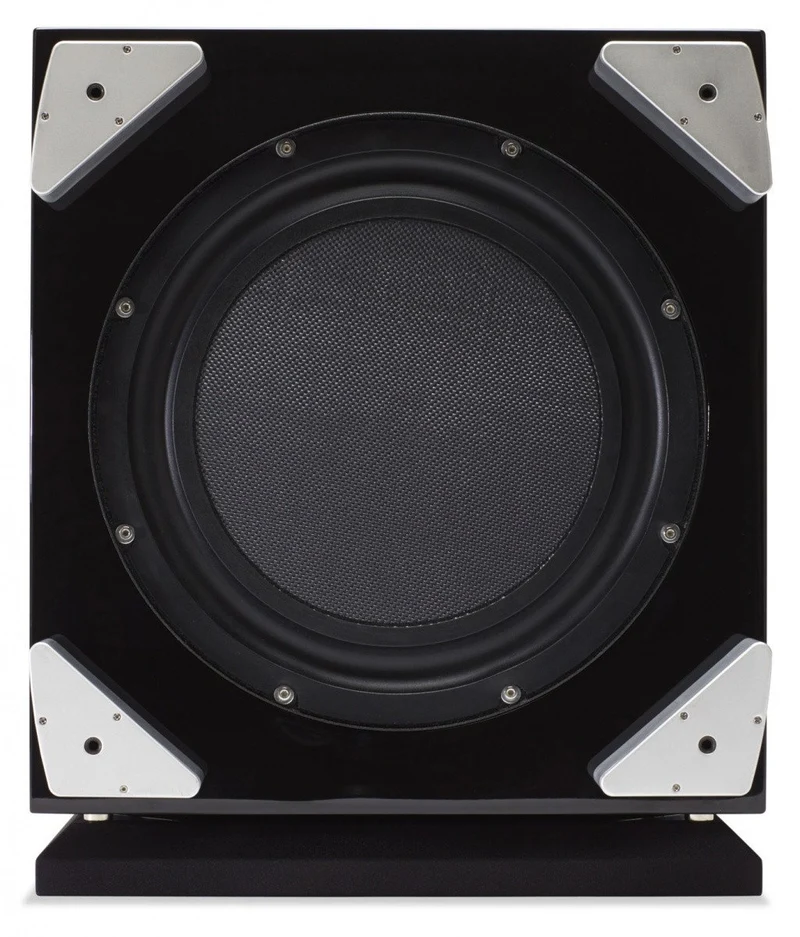

PASSIVE RADIATOR SIZE & MATERIAL

12 in., 300mm Carbon/Carbon flat cone structure, steel chassis

LOW FREQUENCY EXTENTION

-6dB at 21 Hz

INPUT CONNECTORS

CONNECTORS High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, SMA for wireless antenna

OUTPUT CONNECTORS

N/A

POWER OUTPUT

400 watts (RMS)

AMPLIFIER TYPE

NextGen2 Class D

WIRELESS CAPABILITY

Longbow (Optional), Zero Compression, Individual discrete D/A and A/D Encoders

Protection System

FULLY ELECTRONIC SET SAFE

Yes

D.C. FAULT

Yes

OUTPUT SHORT

Yes

MAINS INPUT VOLTAGE

220-240 volts, 110-120 volts for certain markets

FUSES

5 Amp 220 volts operation, 9 Amp 120 volts operation

Dimensions

W X H X D

16 x 16.7 x 18.25 in. (406 x 424 x 463.5 mm)

NET WEIGHT

61.4 lbs. (27.85 kg)

FINISH

Piano Black Lacquer, White Lacquer, 8 coats
