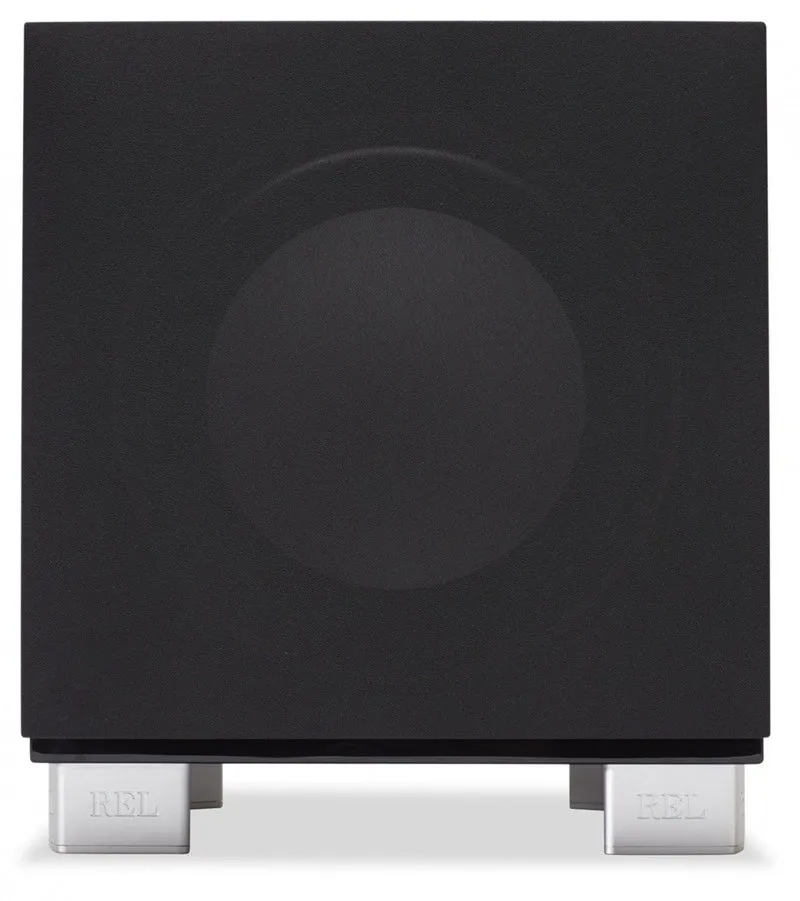

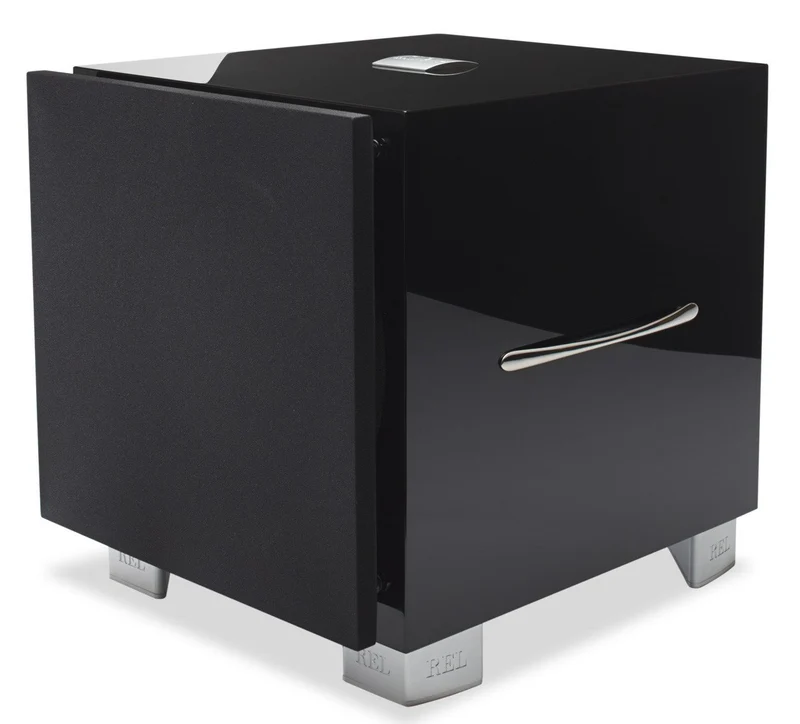

REL S/5 SHO

THE SERIE S FLAGSHIP

S/5 SHO (Super High Output) exceeds the mandate for mid-level models and crosses this model into near reference quality. S/5 SHO’s 15” Continuous CastTM Alloy Cone Driver and carbon passive radiator produces exceptionally low bass with tremendous impact and speed. Its NextGen2 550W digital amplifier makes large scale, high-end 2-channel systems and grand theaters a perfect pairing. Medium to grand rooms are more than appropriate as scale is very large, speed is exceptional, and attack and slam is visceral.

SHO refers to Super High Output, made possible by a new 3-stage limiter our engineers created after extensive testing revealed that much higher output, higher gain and higher performance could be unlocked. The result is a new design that is capable of more than doubling its predecessor’s output. Specify the S/5 SHO, singly or in pairs, when your system is of exceptionally high quality, and your speakers and room can support high levels of dynamics and bass extension.

Specifications

TYPE

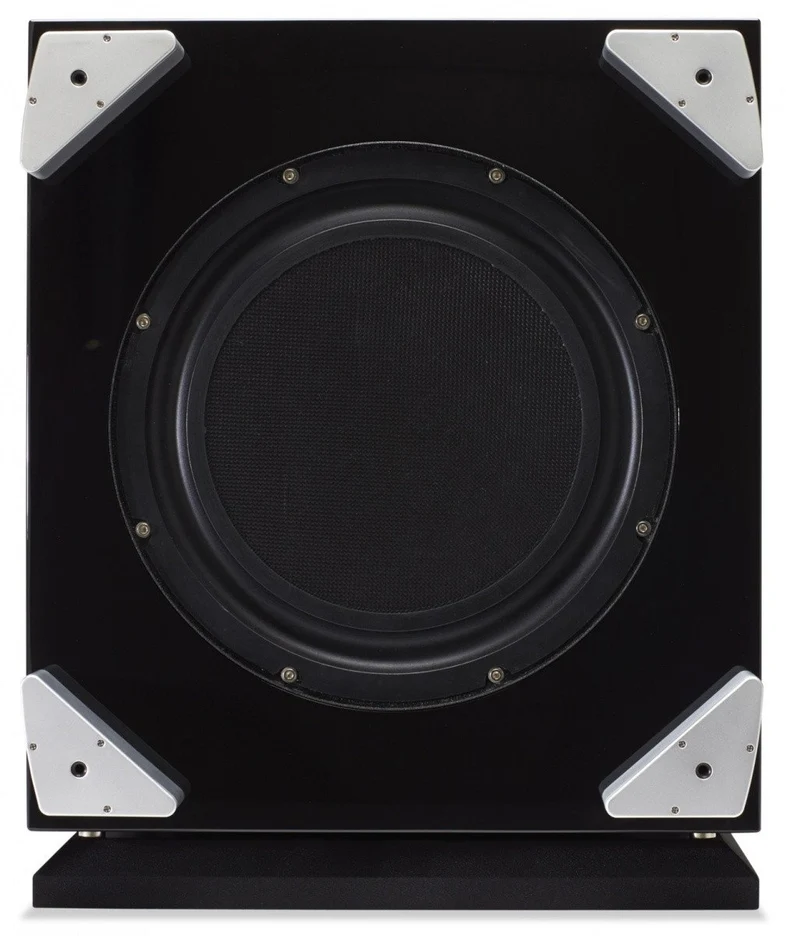

Front-firing active driver, down-firing passive

ACTIVE DRIVER SIZE & MATERIAL

12 in., 300mm long-throw, Continuous CastAlloy™ cone structure, cast chassis

PASSIVE RADIATOR SIZE & MATERIAL

12 in., 300mm Carbon/Carbon flat cone structure, steel chassis

LOW FREQUENCY EXTENTION

-6dB at 20 Hz

INPUT CONNECTORS

High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, SMA for wireless antenna

OUTPUT CONNECTORS

N/A

POWER OUTPUT

550 watts (RMS)

AMPLIFIER TYPE

NextGen2 Class D

WIRELESS CAPABILITY

Longbow (Optional), Zero Compression, Individual discrete D/A and A/D Encoders

Protection System

FULLY ELECTRONIC SET SAFE

Yes

D.C. FAULT

Yes

OUTPUT SHORT

Yes

MAINS INPUT VOLTAGE

220-240 volts, 110-120 volts for certain markets

FUSES

5 Amp 220 volts operation, 9 Amp 120 volts operation

Dimensions

W X H X D

17.5 x 18 x 20 in. (444.5 x 455.5 x 507 mm)

NET WEIGHT

69.7 lbs. (31.6 kg)

FINISH

Piano Black Lacquer, White Lacquer, 8 coats
