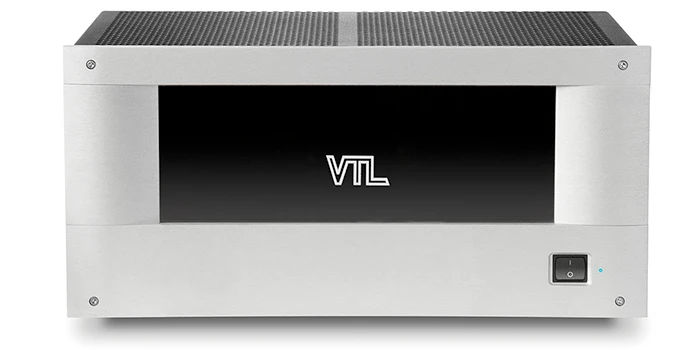

VTL MB-125 Monoblock Amplifier
Beskrivning
| Vacuum Tube Complement | 4 x EL34, 2 x 12AT7 | |||
| Output power 20Hz – 20kHz <3% |
Tetrode: 100W, Triode: 50W Into 5Ω |
|||
| Input sensitivity | 700mV | |||
| Input impedance | 145kΩ | |||
| Optimum load range | 2Ω – 8Ω | |||
| S/N Ratio | -95dB, 120Hz @ 100W Tetrode or 50W Triode | |||
| Power consumption | Idle = 100W, Full power = 300W | |||
| Primary mains fuse ratings | 100/120V = 6A Ceramic Slo Blo, 220/240V = 3A Ceramic Slo Blo | |||
| B+ fuse ratings | 0.75A Fast Acting Ceramic | |||
| Dimensions W x D x H | 16 x 12 x 7 inches (40 x 30 x 18 cm) | |||
| Weight per monoblock |
42lbs (22Kg) unpacked, 45lbs (25Kg) packed | |||
