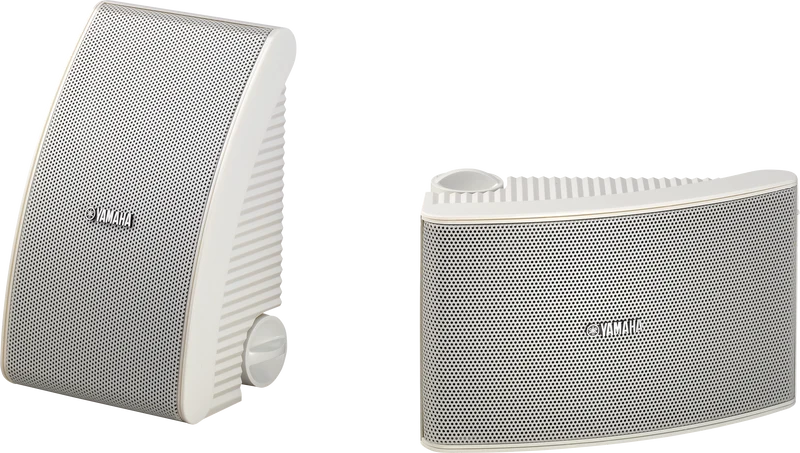

Yamaha NS-AW392 White

Outdoor speaker systems that combine quality and durability, and provide a wide variety of installation options.

• Yamaha's advanced speaker technology makes it possible to combine high sound quality with long-term durability
• Unique angled cabinet design blends in with external and interior décors
• Two-way acoustic suspension design
• High-grade weatherproof cabinets with special processing for drip, water and UV resistance
• Precise sound imaging supported by time-aligned woofer and tweeter placement
• Flexible installation options with supplied mounting brackets
• Weather resistant 5-way binding post speaker terminals
• Powder-coated aluminum speaker grilles
• Supplied rubber feet for desktop/bookshelf placement
• Wide range of applications for home theaters, small commercial spaces and public buildings

Durability

• High-grade weatherproof cabinets with special processing for drip, water and UV resistance New waterproof woofer and soft dome tweeter• Weather resistant 5-way binding post speaker terminals• Powder-coated aluminum speaker grilles

Premium Sound Quality and Design

• Yamaha's advanced speaker technology makes it possible to combine high sound quality with long-term durability• Unique angled cabinet design blends in with external and interior décors• Two-way acoustic suspension design— New waterproof woofer for accurate mid/low frequency response— Fluid-cooled, coated soft dome tweeter for clear high frequency sound— Waveguide and front baffle for wide sound dispersion• Precise sound imaging supported by time-aligned woofer and tweeter placement

Versatility

• Supplied mounting brackets allow the speakers to be mounted on the wall or on the ceiling, with either end facing up, or even horizontally, with a 90° adjustment range Install the NSAW992, NSAW592, NSAW392 all-weather speakes on the wall or the ceiling• Supplied rubber feet for desktop/bookshelf placement• Wide range of applications for home theaters, small commercial spaces and public buildings.

Specifications Type Woofers Tweeter Frequency Response Nominal Input Power Maximum Input Power Sensitivity Crossover Frequencies Impedance Dimensions (W x H x D) Weight

		NS-AW392

		NS-AW392
Specifications
Type		2-way acoustic suspension
Woofers		13cm (5-1/4") waterproof cone
Tweeter		2.5cm (1") fluid-cooled, coated soft dome
Frequency Response		60 Hz –25 kHz
Nominal Input Power		40 W
Maximum Input Power		120 W
Sensitivity		86 dB/2.83 V/1 m
Crossover Frequencies		6 kHz
Impedance		6 ohms
Dimensions (W x H x D)		170 x 273 x 136 mm(6-3/4” x 10-3/4” x 5-3/8”)
Weight		1.8 kg; 4 lbs./unit
