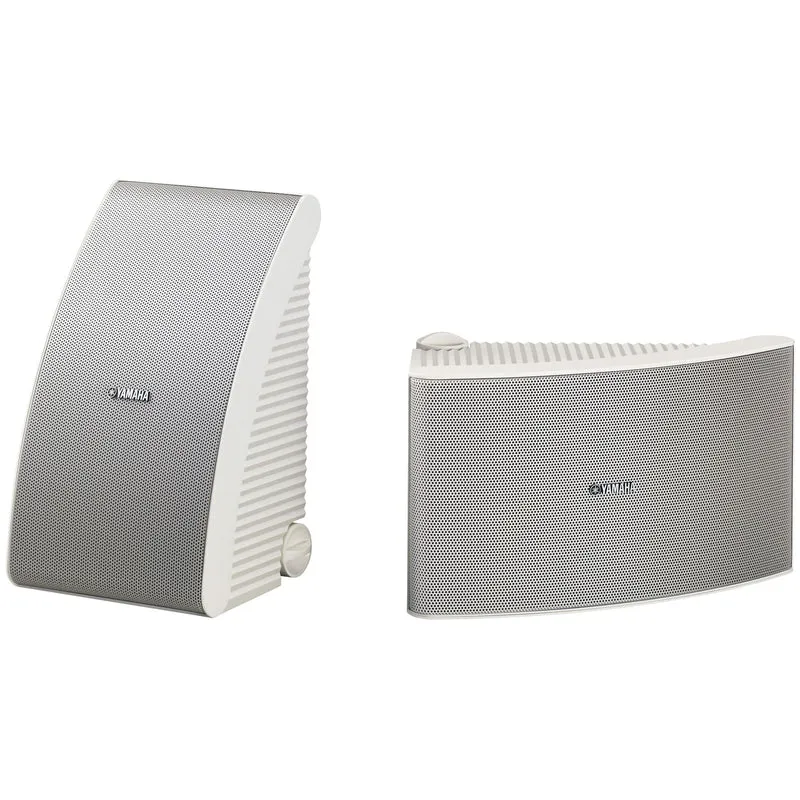

Yamaha NS-AW992 White

Durability

• High-grade weatherproof cabinets with special processing for drip, water and UV resistance New waterproof woofer and soft dome tweeter• Weather resistant 5-way binding post speaker terminals• Powder-coated aluminum speaker grilles

Premium Sound Quality and Design

• Yamaha's advanced speaker technology makes it possible to combine high sound quality with long-term durability• Unique angled cabinet design blends in with external and interior décors• Two-way acoustic suspension design— New waterproof woofer for accurate mid/low frequency response— Fluid-cooled, coated soft dome tweeter for clear high frequency sound— Waveguide and front baffle for wide sound dispersion• Precise sound imaging supported by time-aligned woofer and tweeter placement

Versatility

• Supplied mounting brackets allow the speakers to be mounted on the wall or on the ceiling, with either end facing up, or even horizontally, with a 90° adjustment range Install the NSAW992, NSAW592, NSAW392 all-weather speakes on the wall or the ceiling• Supplied rubber feet for desktop/bookshelf placement• Wide range of applications for home theaters, small commercial spaces and public buildings.

Specifications Type Woofers MidRange Driver Frequency Response Nominal Input Power Maximum Input Power Sensitivity Crossover Frequencies Impedance Dimensions (W x H x D) Weight

		NS-AW992
Specifications
Type		2-way acoustic suspension
Woofers		20cm (8") waterproof cone
MidRange Driver		2.5cm (1") fluid-cooled, coated soft dome
Frequency Response		50 Hz –20 kHz
Nominal Input Power		60W
Maximum Input Power		180 W
Sensitivity		90 dB/2.83 V/1 m
Crossover Frequencies		5 kHz
Impedance		6 ohms
Dimensions (W x H x D)		233 x 388 x 209 mm(9-1/8” x 15-1/4” x 8-1/4”)
Weight		6 kg; 13.2 lbs./unit
