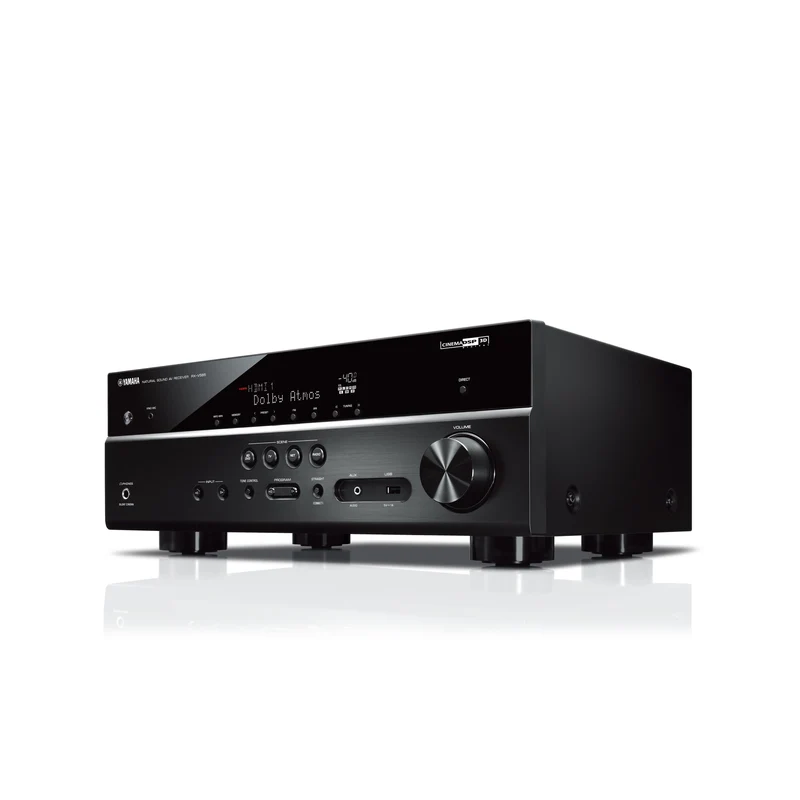

Yamaha RX-V585 AV Receiver Black

[Coming Soon] 7.2-channel AV receiver supports the latest network functions for an amazing AV experience.

• 7-channel powerful surround sound
• --- 80 W per channel (6 ohms, 20 Hz-20 kHz, 0.09% THD, 2-ch driven)
• --- 115 W per channel (6 ohms, 1 kHz, 0.9% THD, 1-ch driven)
• --- 145 W per channel (6 ohms, 1 kHz, 10% THD, 1-ch driven)
• Ability to add wireless surround speaker/s* (*MusicCast 20 or MusicCast 50)
• Dolby Atmos® and DTS:X™ support
• Amazon Alexa voice control compatibility* (*Availability varies by region)
• YPAO™ sound optimisation
• Music streaming services built-in
• HDMI® (4 in / 1 out) with Dolby Vision™ and Hybrid Log-Gamma

Explore Every Dimension

Dolby Atmos® and DTS:X™

Compatibility with these amazing sound technologies transports you from an ordinary moment into an extraordinary experience. They deliver breathtakingly rich and realistic surround sound, positioning and moving individual sounds to any virtual point in your room, including objects moving overhead. Experience the overwhelming realistic movement and immersion in videos — right in your home theatre room.

Immerse Yourself in the Sound

CINEMA DSP 3D

This unique Yamaha proprietary sound field creation technology, was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilising its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing that vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of those concert halls on home equipment. Immerse yourself in the astounding realism of your movies, and enter a world of profound theatre sound.

Easy Sound Optimisation

YPAO™

YPAO (Yamaha Parametric room Acoustic Optimizer) analyses the room acoustics and your system, then precisely adjusts various audio parameters to provide the best sound for your room. Simply by placing the supplied microphone at your listening position and switching YPAO on, the system is automatically tuned for optimum performance in your home theatre room.

Optimum Performance

High-quality Parts

Yamaha AV receivers feature fully discrete power amplifiers to minimise distortion and adopt independent pure power supplies for the analogue and digital circuitry. They also feature ultra-high performance with 384 kHz / 32-bit DACs, also with Independent power supplies, for reproducing absolutely all the audio in High Resolution sound sources without noise. A new high sound quality IC is employed for volume control and large heat sinks suppress vibration. Down to every detail, these AV receivers are designed with full emphasis on the highest possible sound quality.

AV Receiver Amplifier Section Channel Rated Output Power (1kHz, 1ch driven) Rated Output Power (20Hz-20kHz, 2ch driven) Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) Dynamic Power per Channel (8/6/4/2 ohms) Surround Sound Processing CINEMA DSP DSP Programs Dialog Level Adjustment Virtual Presence Speaker Virtual Surround Back Speaker Dialogue Lift SILENT CINEMA / Virtual CINEMA DSP Dolby Atmos Dolby TrueHD Dolby Digital Plus Dolby Surround DTS:X DTS-HD Master Audio Audio Features File Format Compressed Music Enhancer YPAO sound optimization Adaptive DRC (Dynamic Range Control) Initial Volume & Maximum Volume Setting Bi-amp capability Audio Delay DA Converter Video Features 4K Ultra HD Pass-through and upscaling HDMI 3D passthrough HDMI eARC HDMI Audio Return Channel HDMI upscaling Deep Colour/x.v.Colour/24Hz Refresh Rate /Auto Lip-Sync Connectivity MusicCast Surround HDMI Input/Output HDMI CEC USB Input Network Port Wi-Fi AirPlay Bluetooth Front AV Input Digital Audio Input/Output: Optical Digital Audio Input/Output: Coaxial Analog Audio Input/Output Composite Video Input/Output Preout Headphone Output Tuner Section FM/AM Tuner User Interface On-screen display SCENE App Control Remote Control Unit Zone Control Zone B Output General Standby Power Consumption (IR only) Auto Power Standby ECO mode Dimensions (W x H x D) Weight

		RX-V585

		RX-V585
AV Receiver
Amplifier Section	Channel	7.2
	Rated Output Power (1kHz, 1ch driven)	115 W (6 ohms, 0.9% THD)
	Rated Output Power (20Hz-20kHz, 2ch driven)	80 W (6 ohms, 0.09% THD)
	Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)	145 W (6 ohms, 10% THD)
	Dynamic Power per Channel (8/6/4/2 ohms)	- / 140 / 170 / 190 W
Surround Sound Processing	CINEMA DSP	Yes (3D)
	DSP Programs	17
	Dialog Level Adjustment	Yes
	Virtual Presence Speaker	Yes
	Virtual Surround Back Speaker	Yes
	Dialogue Lift	Yes
	SILENT CINEMA / Virtual CINEMA DSP	Yes (Virtual CINEMA FRONT)
	Dolby Atmos	Yes
	Dolby TrueHD	Yes
	Dolby Digital Plus	Yes
	Dolby Surround	Yes
	DTS:X	Yes
	DTS-HD Master Audio	Yes
Audio Features	File Format	MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz
	Compressed Music Enhancer	Yes (incl. enhancer for Bluetooth®)
	YPAO sound optimization	Yes
	Adaptive DRC (Dynamic Range Control)	Yes
	Initial Volume & Maximum Volume Setting	Yes
	Bi-amp capability	Yes
	Audio Delay	Yes (0-500 ms)
	DA Converter	Burr-Brown 384 kHz / 32-bit DAC x 4
Video Features	4K Ultra HD Pass-through and upscaling	Yes (4K / 60p, 4:4:4)
	HDMI 3D passthrough	Yes
	HDMI eARC	Yes (via future firmware update)
	HDMI Audio Return Channel	Yes
	HDMI upscaling	Yes (HDMI® to HDMI)
	Deep Colour/x.v.Colour/24Hz Refresh Rate /Auto Lip-Sync	Yes
Connectivity	MusicCast Surround	Yes
	HDMI Input/Output	4 / 1 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
	HDMI CEC	Yes
	USB Input	USB Memory, Portable Audio Player
	Network Port	Yes
	Wi-Fi	Yes (2.4 / 5 GHz)
	AirPlay	Yes
	Bluetooth	Yes (SBC / AAC)
	Front AV Input	USB / Mini Jack
	Digital Audio Input/Output: Optical	1 / 0
	Digital Audio Input/Output: Coaxial	2 / 0
	Analog Audio Input/Output	5 (front 1) / 0
	Composite Video Input/Output	3 / 1
	Preout	Subwoofer (2 x mono)
	Headphone Output	1
Tuner Section	FM/AM Tuner	Yes
User Interface	On-screen display	Yes (colour OSD)
	SCENE	SCENE (4 sets)
	App Control	Yes (iPhone / iPad / Android phone / tablet)
	Remote Control Unit	Yes
Zone Control	Zone B Output	Yes
General	Standby Power Consumption (IR only)	≤0.1W
	Auto Power Standby	Yes
	ECO mode	Yes
	Dimensions (W x H x D)	435 x 161 x 327 mm (with antenna: 435 x 225.5 x 327 mm); 17-1/8” x 6-3/8” x 12-7/8” (with antenna: 17-1/8” x 8-7/8” x 12-7/8”)
	Weight	8.1 kg; 17.9 lbs.
