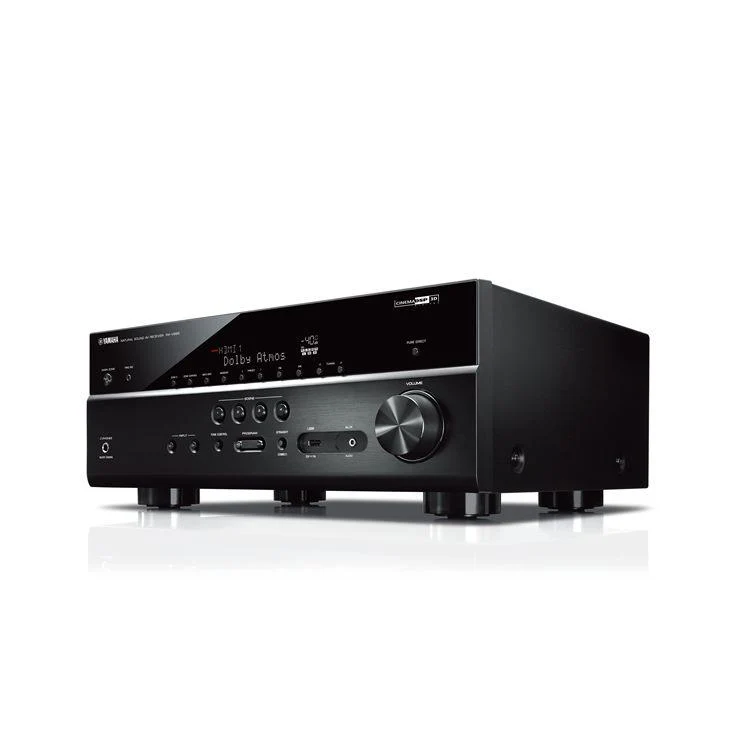

Yamaha RX-V685 AV Receiver

Unrivaled Experiences. This 7.2-channel AV receiver boldly explores entertainment possibilities for an advanced home theater with the latest in video and audio including Dolby Atmos®, DTS:X™, wireless streaming, dual HDMI® outputs and more.

• 7.2-Channel powerful surround sound with Zone 2
• Wi-Fi®, Bluetooth®, AirPlay®, Spotify Connect and MusicCast multi-room
• Pandora®, Spotify, SiriusXM Internet Radio, TIDAL, Deezer, Napster and more
• HDMI® with HDCP 2.2 (5 in/2 out)
• 4K Ultra HD, HDR10, Dolby Vision™, Hybrid Log-Gamma and BT.2020
• Voice control using your Alexa device like Echo or Echo Dot
• MusicCast Surround capable: add MusicCast 20 or MusicCast 50 speakers to create a 5.1-channel setup with wireless rear surrounds

Features

Full 4K

4K Ultra HD HDMI Support

Providing complete compatibility with the latest HDMI standards, this AV receiver delivers transmission of 4K video at 60 frames/second pass-through. It also supports HDR (high dynamic range) video including Dolby Vision and Hybrid Log-Gamma. This provides incredible contrast, smooth tone and rich, bright colors—giving you full, high-definition enjoyment with an exceptionally realistic and natural picture quality.

Dual Wield

Two HDMI Outputs

Since the RX-V685 has two HDMI outputs, simultaneous connection to a TV and video projector is possible. Or you can add an additional TV in a common area like a kitchen or patio to watch the same content in two different rooms. HDMI Out 2 will carry an HDMI audio signal to the second TV to provide sound.

Stream Simply

Wi-Fi, Bluetooth, and AirPlay

Built-in Wi-Fi allows for a connection with your wireless router, greatly simplifying system connections for music streaming or enjoying networked audio (PC/NAS). Bluetoothconnectivity is also included to stream into your receiver or out from the receiver to another Bluetooth device such as a pair of headphones.

New Heights in Sound

Dolby Atmos and DTS:X

Compatibility with these amazing sound technologies creates an extraordinary experience. They deliver breathtakingly rich and realistic surround sound, positioning and moving individual sounds to any virtual point in your room, including objects moving overhead. Experience the overwhelming realistic movement and immersion in videos — right in your home.

Experiences Expanded

CINEMA DSP 3D

This Yamaha proprietary sound field creation technology was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilizing its wealth of experience in the fields of concert hall design, public address, and mixing. By digitizing that vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the acoustic spaces of those concert halls on home equipment. Immerse yourself in the astounding realism of your movies and music with this sound technology.

Advanced Sound Optimization

YPAO™ - R.S.C. (Reflected Sound Control) Sound Optimization

This technology analyzes room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimum sound. It employs Reflected Sound Control to correct early reflections for studio-quality sound. It also provides DSP Effect Normalization, which varies the CINEMA DSP parameters according to the reflected sounds.

Optimum Performance

High-Quality Parts and Design

Yamaha AV receivers feature fully discrete power amplifiers to minimize distortion and adopt independent pure power supplies for the analog and digital circuitry. They house ultra-high performance 384 kHz / 32-bit DACs, also with independent power supplies. These support in reproducing audio for high resolution sound sources without noise. Moreover, a new high sound quality IC is employed for volume control and large heat sinks suppress vibration. Down to every detail, these AV receivers are designed with full emphasis on the highest possible sound quality.

Wire Less

Wireless Surround Speakers

Combine this AV receiver with the upcoming MusicCast 50 or MusicCast 20 wireless streaming speakers and enjoy the convenience of creating a home theater with wireless rear speakers in a 5.1-channel system. What's more, you get stunningly realistic sound with a clean, clutter-free setup. Easily turn your current living room into an entertainment environment where you can fully enjoy movies, music and games.

AV Receiver Amplifier Section Channel Rated Output Power (1kHz, 2ch driven) Rated Output Power (20Hz-20kHz, 2ch driven) Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) Dynamic Power / Ch (Front L/R, 8/6/4/2 ohms) Surround Sound Processing Cinema DSP DSP Programs Dialog Level Adjustment Virtual Presence Speaker Virtual Surround Back Speaker Dialogue Lift SILENT Cinema / Virtual Cinema DSP Dolby Atmos Dolby TrueHD Dolby Digital Plus Dolby Surround DTS:X DTS-HD Master Audio Audio Features File Format Pure Direct Compressed Music Enhancer YPAO Sound Optimization YPAO Volume Adaptive DRC (Dynamic Range Control) Initial Volume and Maximum Volume Setting Bi-amp Capability Audio Delay DA Converter Video Features 4K Ultra HD Pass-through and Upscaling HDMI 3D Pass-through HDMI eARC HDMI Audio Return Channel HDMI Upscaling Deep Color / x.v.Color / 24Hz Refresh Rate / Auto Lip-Sync Connectivity MusicCast Surround Wi-Fi AirPlay Bluetooth Phono Input Component Video Input/Output Extensive Connection HDMI Input/Output HDMI CEC USB Input Network Port Front AV Input Digital Audio Input / Output: Optical Digital Audio Input / Output: Coaxial Analog Audio Input / Output Composite Video Input / Output Preout Headphone Output Tuner Section FM / AM Tuner User Interface On-Screen Display SCENE App Control Web Browser Control Remote Control Unit Zone Control Zone 2 Audio Output Powered Zone +12V Trigger Output Remote (IR) Input/Output Party Mode General Standby Power Consumption (IR only) Auto Power Standby ECO Mode Dimensions (W x H x D) Weight

		RX-V685

		RX-V685
AV Receiver
Amplifier Section	Channel	7.2
	Rated Output Power (1kHz, 2ch driven)	125 W (8 ohms, 0.9% THD)
	Rated Output Power (20Hz-20kHz, 2ch driven)	90 W (8 ohms, 0.06% THD)
	Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)	150 W (8 ohms, 10% THD)
	Dynamic Power / Ch (Front L/R, 8/6/4/2 ohms)	125 / 165 / 190 / 235 W
Surround Sound Processing	Cinema DSP	Yes (3D)
	DSP Programs	17
	Dialog Level Adjustment	Yes
	Virtual Presence Speaker	Yes
	Virtual Surround Back Speaker	Yes
	Dialogue Lift	Yes (no presence speakers required)
	SILENT Cinema / Virtual Cinema DSP	Yes (Virtual CINEMA FRONT)
	Dolby Atmos	Yes
	Dolby TrueHD	Yes
	Dolby Digital Plus	Yes
	Dolby Surround	Yes
	DTS:X	Yes
	DTS-HD Master Audio	Yes
Audio Features	File Format	MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz
	Pure Direct	Yes (with video on mode)
	Compressed Music Enhancer	Yes (includes enhancer for Bluetooth®)
	YPAO Sound Optimization	Yes (R.S.C.)
	YPAO Volume	Yes
	Adaptive DRC (Dynamic Range Control)	Yes
	Initial Volume and Maximum Volume Setting	Yes
	Bi-amp Capability	Yes
	Audio Delay	Yes (0-500 ms)
	DA Converter	Burr-Brown 384 kHz / 32-bit DAC x 4 for main zone
Video Features	4K Ultra HD Pass-through and Upscaling	Yes (4K / 60p, 4:4:4)
	HDMI 3D Pass-through	Yes
	HDMI eARC	Yes (via future firmware update)
	HDMI Audio Return Channel	Yes
	HDMI Upscaling	Yes (analog to HDMI / 1080p HDMI → 4K HDMI)
	Deep Color / x.v.Color / 24Hz Refresh Rate / Auto Lip-Sync	Yes
Connectivity	MusicCast Surround	Yes
	Wi-Fi	Yes (2.4 / 5 GHz)
	AirPlay	Yes
	Bluetooth	Yes (SBC / AAC)
	Phono Input	Yes
	Component Video Input/Output	1 / 0
Extensive Connection	HDMI Input/Output	5 / 2 (HDCP 2.2, HDR10 / Dolby Vision™ / HLG and BT.2020 compatible)
	HDMI CEC	Yes (SCENE, device control)
	USB Input	USB memory
	Network Port	Yes
	Front AV Input	USB / mini jack
	Digital Audio Input / Output: Optical	2 / 0
	Digital Audio Input / Output: Coaxial	2 / 0
	Analog Audio Input / Output	4 (front 1) / 0
	Composite Video Input / Output	1 / 0
	Preout	2.2-channel
	Headphone Output	1
Tuner Section	FM / AM Tuner	Yes
User Interface	On-Screen Display	Graphical User Interface
	SCENE	SCENE PLUS (8 sets)
	App Control	Yes (iPhone / iPad / Android phone / tablet)
	Web Browser Control	Yes
	Remote Control Unit	Yes
Zone Control	Zone 2 Audio Output	Preout
	Powered Zone	Zone 2
	+12V Trigger Output	1
	Remote (IR) Input/Output	1 / 1
	Party Mode	Yes
General	Standby Power Consumption (IR only)	≤ 0.1 W
	Auto Power Standby	Yes
	ECO Mode	Yes
	Dimensions (W x H x D)	17-1/8" x 6-3/4" x 14-7/8" (with antenna up: 17-1/8" x 9-3/4" x 14-7/8")
	Weight	23.1 lbs.
